Power transformer
immersedfor outdoor servicefor automotive applications

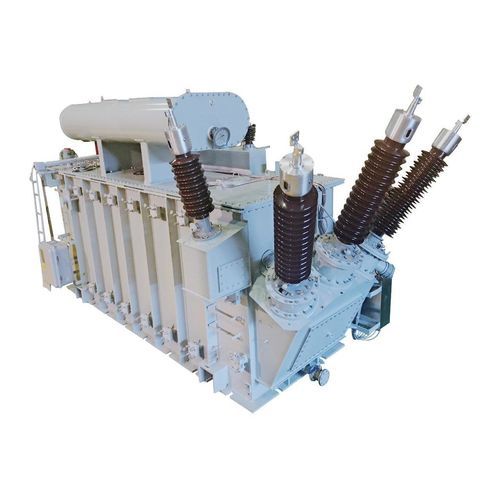

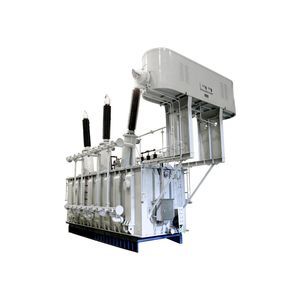

Power transformer - Ficont Industry (Beijing) Co., Ltd. - immersed / for outdoor service / for automotive applications
Power transformer - Ficont Industry (Beijing) Co., Ltd. - immersed / for outdoor service / for automotive applications
Add to favorites
Compare this product

Characteristics

Type
power
Configuration
immersed
Applications
for outdoor service, high-power, for automotive applications
Electrical characteristics
three-phase, high-voltage, medium-voltage
Other characteristics
compact, low-loss, three-winding, portable
Electric power

Max.: 300,000,000 W

Min.: 100,000,000 W

Output power kVA

Max.: 300,000 kVA
(407,886.346548 hp)

Min.: 100,000 kVA
(135,962.115516 hp)

Primary voltage

110 kV

Secondary voltage

35 kV

Description

Features
  • Low core and load losses
  • Low partial discharge for reliable insulation performance
  • Designed for temporary/mobile power supply on vehicles
  • Compact footprint for vehicle integration


Product specifications
  • Rated power: 100–300 MVA
  • Rated voltage: 110/35 kV
  • Vector group: YNd11-d11
  • Short-circuit impedance: 15–25% (half-through)
  • Power ratio: 100/50+50


Normal operating condition
  • Altitude: ≤ 1000 m
  • Ambient temperature: -25 °C to +40 °C
  • Relative humidity: ≤ 90% (at 25 °C)
  • Installation location: Outdoor vehicle mounting


Notes
  • Transformers for special operating conditions or different ratings can be supplied on request.


Specifications (table)
Rated power: 100–300 MVA
Rated voltage: 110/35 kV
Vector group: YNd11-d11
Short-circuit impedance: 15–25% (half-through)
Power ratio: 100/50+50

Technical specifications
  • Altitude (operating): ≤ 1000 m
  • Ambient temperature (operating): -25 °C to +40 °C
  • Relative humidity (operating): ≤ 90% at 25 °C
  • Installation location: Outdoor vehicle mounting
  • Key features: Low loss; Low partial discharge; Temporary power supply; Compact size
