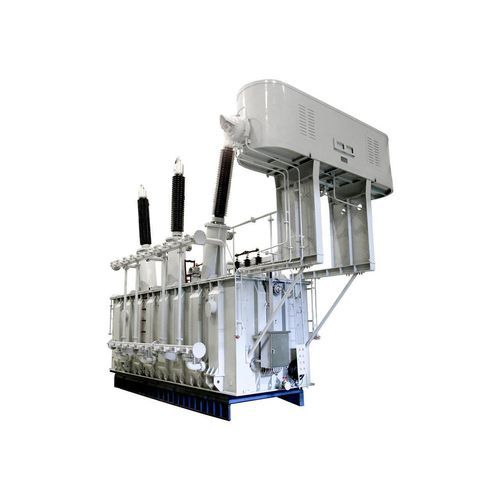

Power transformer immersedinteriorfor outdoor service
Add to favorites
Compare this product
Characteristics
- Type
- power
- Configuration
- immersed
- Applications
- interior, for outdoor service
- Electrical characteristics
- high-voltage
- Primary voltage
220 kV
Description
Product
Features
Normal operating conditions
Note
Technical specifications
- 220 kV Oil-immersed power transformer
Features
- Excellent temperature rise control
- Low partial discharge
- Strong short-circuit withstand capability
- Low loss and high energy efficiency
Normal operating conditions
- Altitude: ≤ 1000 m
- Ambient temperature: Maximum air temperature: +40℃; Maximum monthly average air temperature: +30℃; Maximum annual average air temperature: +20℃; Minimum air temperature: -25℃
- Relative humidity: ≤ 90% (25℃), no condensation or icing during operation
- Power supply requirements: Output waveform closely approximates a sinusoid; three-phase voltages remain essentially symmetrical
- Installation location: Indoor or outdoor
Note
- Transformers for use under special conditions can be provided on request.
Technical specifications
- Type: Oil-immersed power transformer
- Rated voltage level indicated in product name: 220 kV
- Cooling/insulation medium: Mineral oil (oil-immersed)
- Temperature performance: Designed for controlled temperature rise (see Features)
- Partial discharge performance: Low partial discharge
- Mechanical strength: Strong short-circuit withstand capability
- Efficiency: Low loss, high energy efficiency
- Environmental operating range: Altitude ≤ 1000 m; ambient temperature range -25℃ to +40℃ (with monthly/annual averages as stated)
- Humidity: Suitable for environments up to 90% RH (25℃) without condensation or icing
- Power quality requirement: Nearly sinusoidal output and essentially symmetrical three-phase voltages
- Installation: Suitable for indoor or outdoor installation
- Customization: Units for special conditions available on request
