Power transformer
immersedfor indoor servicefor outdoor service

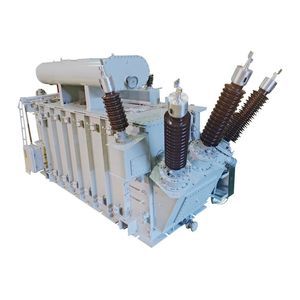

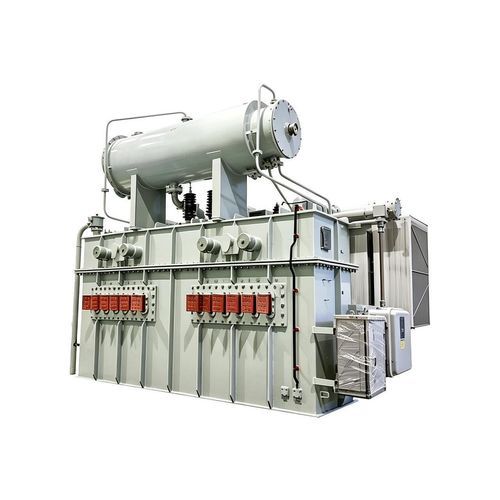

Power transformer - Ficont Industry (Beijing) Co., Ltd. - immersed / for indoor service / for outdoor service
Power transformer - Ficont Industry (Beijing) Co., Ltd. - immersed / for indoor service / for outdoor service
Add to favorites
Compare this product

Characteristics

Type
power
Configuration
immersed
Applications
for indoor service, for outdoor service
Other characteristics
compact, low-loss, oil-filled, phase-shifting
Output power kVA

Max.: 20,000 kVA
(27,192.423103 hp)

Min.: 5,000 kVA
(6,798.105776 hp)

Primary voltage

35 kV

Secondary voltage

Max.: 1 kV

Min.: 0.5 kV

Description

Features
  • Low loss
  • Low partial discharge
  • Multi-pulse
  • Compact size


Product specifications
  • Rated power: 5000–20000 kVA
  • Rated voltage: 35 kV / 0.5–1 kV
  • Short-circuit impedance: 5.5–10%
  • Phase-shift angle: 0–30°
  • Cooling method: ONAF (oil natural, air forced cooling)


Specifications (table)
Rated power: 5000–20000 kVA
Rated voltage: 35 kV / 0.5–1 kV
Short-circuit impedance: 5.5–10%
Phase-shift angle: 0–30°
Cooling method: ONAF (oil natural, air forced cooling)

Normal operating condition
  • Altitude: ≤ 1000 m
  • Ambient temperature: -15°C to +40°C
  • Relative humidity: ≤ 90% (25°C)
  • Installation location: indoor or outdoor


*Note: Transformers for use under special conditions can be provided according to order requirements.

Technical specifications
  • Rated power: 5000–20000 kVA
  • Rated voltage: 35 kV / 0.5–1 kV
  • Short-circuit impedance: 5.5–10%
  • Phase-shift angle: 0–30°
  • Cooling method: ONAF (oil natural, air forced cooling)
  • Features: Low loss; Low partial discharge; Multi-pulse; Compact size
  • Normal operating altitude: ≤ 1000 m
  • Operating ambient temperature range: -15°C to +40°C
  • Maximum relative humidity: ≤ 90% (25°C)
  • Installation: indoor or outdoor
  • Special-condition variants: available on request
