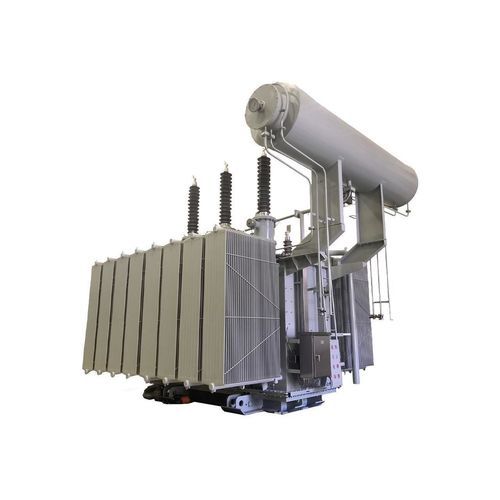

Power transformer distributionimmersedfor indoor service
Add to favorites
Compare this product
Characteristics
- Type
- power, distribution
- Configuration
- immersed
- Applications
- for indoor service, for outdoor service
- Electrical characteristics
- high-voltage
- Other characteristics
- low-loss, short-circuit, oil-filled
- Primary voltage
110 kV
Description
Product overview
Features
Normal operating condition
Note
Technical characteristics / specifications
- 110 kV oil-immersed power transformer designed for indoor or outdoor installation, suitable for distribution and transmission networks.
Features
- Excellent temperature rise control to maintain winding and insulation performance
- Low partial discharge for enhanced insulation integrity
- Strong short-circuit withstand capability
- Low loss, high energy efficiency
Normal operating condition
- Altitude: ≤ 1000 m
- Ambient temperature:
Maximum air temperature: +40 °C
Maximum monthly average air temperature: +30 °C
Maximum annual average air temperature: +20 °C
Minimum air temperature: -25 °C - Relative humidity: ≤ 90% (25 °C), no condensation or icing during operation
- Power supply requirements: Output waveform closely approximates a sinusoidal wave; three-phase voltages remain essentially symmetrical
- Installation location: indoor or outdoor
Note
- Transformers for use under special or extreme conditions can be supplied according to order requirements.
Technical characteristics / specifications
- Rated voltage: 110 kV
- Type: Oil-immersed power transformer
- Temperature rise control: Excellent
- Partial discharge: Low
- Short-circuit withstand capability: Strong
- Efficiency: Low loss, high energy efficiency
- Altitude (normal): ≤ 1000 m
- Ambient temperature range: -25 °C to +40 °C (with monthly and annual averages noted)
- Relative humidity: ≤ 90% (25 °C), no condensation or icing
- Power supply waveform: Close to sinusoidal; three-phase voltages basically symmetrical
- Installation: Indoor or outdoor
