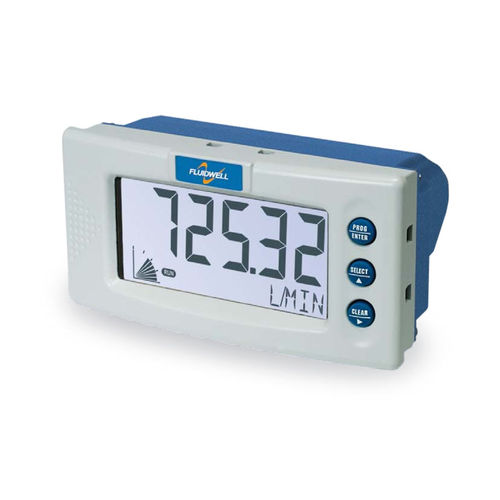

Process indicator D010

rateflowLCD display

The D010 is a panel mount flow rate indicator with large 26mm (1") high digits which displays the actual flow rate. The measuring and time unit to be displayed below the flow rate are simply selected through an alphanumeric configuration menu. No adhesive labels have to be put on the outside of the enclosure: a weather proof and user friendly solution! The configuration of K-factors or Span and number of decimals is done through software functions, without any sensitive dip-switches or trimmers. Advantages - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. Features - Very large 26mm (1") digits. - Piegraph indication: ten segments. - Selectable on-screen engineering units; volumetric or mass. - Ability to process all types of flowmeter signals. - Auto backup of all settings. - Easy configuration with clear alphanumerical display. - Various accessories are available for this product. Applications - The D010 fits in flow measurement applications where a local flow rate indication is required without re-transmission or totalizer functionality. - The D-Series is a DIN-sized display and the better alternative for your existing, not waterproof, front panel mount indicators in extreme weather outdoor applications or e.g. in food industries where working environments are often cleaned with powerful water jets.
