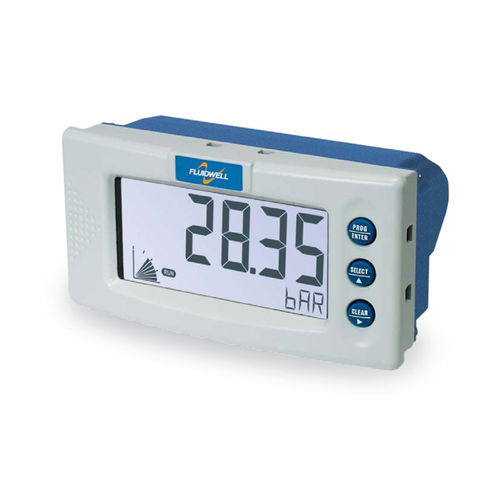

Pressure indicator D050

LCD displaypanel-mountoutdoor

The D050 is a straight forward, panel mount pressure indicator with large 26mm (1") high digits. The measuring unit to be displayed is simply selected through an alfa-numerical configuration menu. No adhesive labels have to be put on the outside of the enclosure: a weather proof and user friendly solution! The configuration of the Span, off-set and number of decimals is done through software functions, without any sensitive dip-switches or trimmers. Advantages - Unique, robust IP66, IP67 (NEMA Type4X) panel mount front enclosure made of die cast aluminum, allowing even big jets of water and total immersion. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. Features - Very large 26mm (1") digits. - Piegraph indication: ten segments. - Number of digits for pressure: 5½. - Selectable on-screen engineering units: mBar - Bar - PSI. - Auto backup of all settings. - Ambient temperature: -40°C to +80°C (-40°F to 176°F). - Easy configuration with clear alphanumerical display. - Aluminum DIN front panel of 144 x 72mm (5.67” x 2.83”) according DIN 43700 / IEC 61554. - Various accessories are available for this product. Applications - The D050 fits in applications where a basic pressure measurement display is required without pressure monitoring. - The D-Series is a DIN-sized display and the better alternative for your existing, not waterproof, front panel mount indicators in extreme weather outdoor applications or e.g. in food industries where working environments are often cleaned with powerful water jets.
