Process indicator totalizer D011

rateflowambient temperature

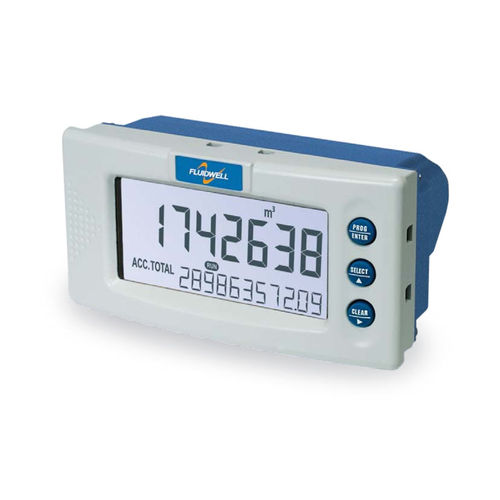

The D011 is a panel mount totalizer which displays the running total and accumulated total simultaneously. Total can be reset to zero by pressing the CLEAR button twice. A non-resettable accumulated total is available with eleven digits. The measuring unit to be displayed is simply selected through an alfa-numerical configuration menu. No adhesive labels have to be put on the outside of the enclosure: a weather proof and userfriendly solution! Advantages - Unique, robust IP66, IP67 (NEMA Type4X) panel mount front enclosure made of die cast aluminum, allowing even big jets of water and total immersion. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. Features - Displays running total and accumulated total. - Ability to process all types of flowmeter signals. - Auto backup of settings and running totals. - Ambient temperature: -40°C to +80°C (-40°F to 176°F). - LED backlight option. - Easy configuration with clear alphanumerical display. - Various accessories are available for this product. Applications - The D011 fits in flow measurement applications where a local totalizer function is required without flow rate or re-transmission functionality. - The D-Series is a DIN-sized display and the better alternative for your existing, not waterproof, front panel mount indicators in extreme weather outdoor applications or e.g. in food industries where working environments are often cleaned with powerful water jets.
