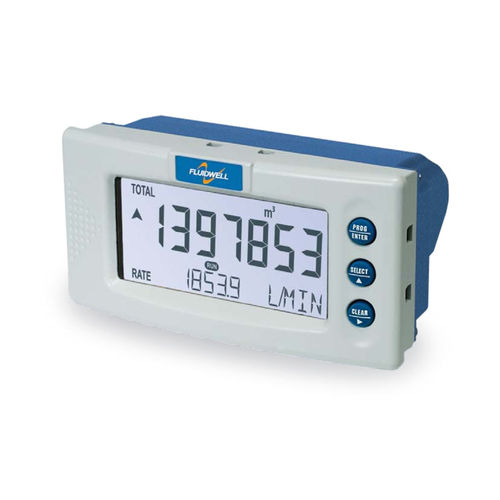

Rate indicator totalizer D016

flowambient temperatureLCD display

The D016 is a panel mount flow rate indicator / totalizer with linearization to display the actual flow rate, total and accumulated total. The total can be reset to zero by pressing the CLEAR button twice. The eleven digit accumulated total however can not be reset to zero. In addition to the average K-Factor or Span, eight linearization points can be entered with there frequencies or values. The unit will interpolate between these points greatly enhancing accuracy in any flowrange. Even for very low frequency applications is catered for. This linearization affects all displayed information as well as the pulse output. Advantages - Unique, robust IP66, IP67 (NEMA Type4X) panel mount front enclosure made of die cast aluminum, allowing even big jets of water and total immersion. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. Features - Displays flow rate, total and accumulated total. - Eight point linearization of the flowcurve - with interpolation. - Selectable on-screen engineering units; volumetric or mass. - Ability to process all types of pulse flowmeter signals. - Auto backup of settings and running totals. - Ambient temperature: -40°C to +80°C (-40°F to 176°F). - Easy configuration with clear alphanumerical display. - Various accessories are available for this product. Applications - The D016 fits in flow measurement applications with mechanical flowmeters where a precise calculation over the full measurement range is required and re-transmission of the totalizer function is desired.
