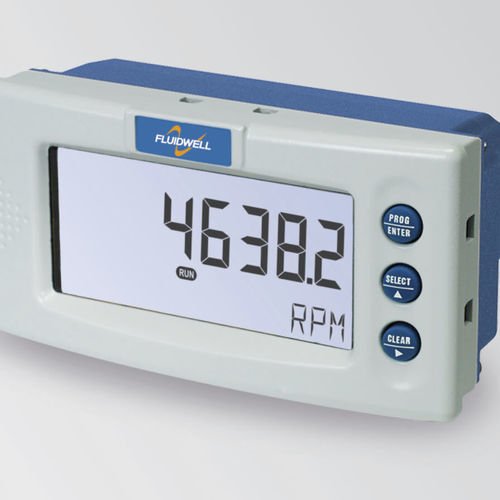

Speed indicator D093

digitalpanel-mountwith alarm

The D093 is a versatile, panel mount multi-purpose indicator to monitor the tachometer engine speed with running hours simultaneously. The running hours can be reset to zero by pressing the CLEAR button twice. The eleven digit accumulated running hours however can not be reset to zero. Advantages - Unique, robust IP66, IP67 (NEMA Type4X) panel mount front enclosure made of die cast aluminum, allowing even big jets of water and total immersion. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. Features - Displays engine speed and running hours simultaneously and additional accumulated running hours, alarm values and alarm messages. - Displays clear alarm messages. - Large 17mm (0.67") digits for engine speed or running hours. - Various alarm values can be entered: low / high engine speed alarm and total running hours alarm. - Auto backup of all settings. - Ambient temperature: -40°C to +80°C (-40°F to 176°F). - Easy configuration with clear alphanumerical display. - Various accessories are available for this product. Applications - Tachometer applications where monitoring of the engine speed and running hours is important and both need to be displayed and registered. - The D-Series is a DIN-sized display and the better alternative for your existing, not waterproof, front panel mount indicators in extreme weather outdoor applications or e.g. in food industries where working environments are often cleaned with powerful water jets.
