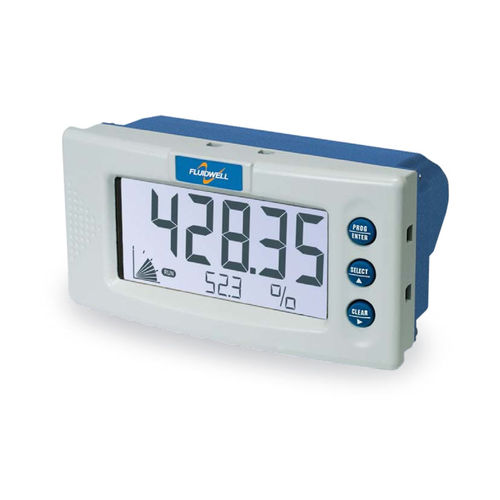

Liquids level indicator D070

electronicfor tankspanel-mount

The D070 is a straight forward, panel mount level indicator with large 26mm (1") high digits. It can be set to display the level as a quantity, height or percentage. The measuring unit to be displayed is simply selected through an alphanumeric configuration menu. No adhesive labels have to be put on the outside of the enclosure: a weather proof and user friendly solution! The configuration of the Span, off-set and number of decimals is done through software functions, without any sensitive dip-switches or trimmers. Advantages - Unique, robust IP66, IP67 (NEMA Type4X) panel mount front enclosure made of die cast aluminum, allowing even big jets of water and total immersion. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. Features - Displays level and height or percentage filled. - Very large 26mm (1") digits. - Piegraph indication: ten segments. - Number of digits for level: 5½. - Selectable on-screen engineering units; volumetric or mass. - Auto backup of all settings. - Ambient temperature: -40°C to +80°C (-40°F to 176°F). - Easy configuration with clear alphanumerical display. - Various accessories are available for this product. Applications - The D070 fits in applications where a basic level measurement display is required without level monitoring and linearization. - The D-Series is a DIN-sized display and the better alternative for your existing, not waterproof, front panel mount indicators in extreme weather outdoor applications or e.g. in food industries where working environments are often cleaned with powerful water jets.
