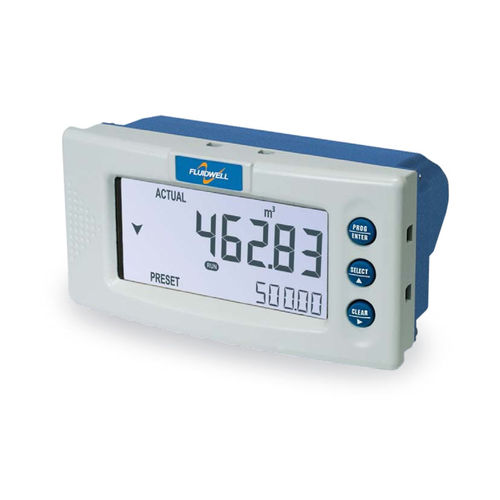

Pump management pump controller D074

The D074 is a basic, panel mount level indicator / pump controller that works with a preset value and two switch points to control a pump or valve. The low and high level switch points are entered as a percentage of the preset value to switch the device on / off. For pump control applications, the function can be inverted to empty a well. A stable level within a hysterese around the preset value is the result. Advantages - Unique, robust IP66, IP67 (NEMA Type4X) panel mount front enclosure made of die cast aluminum, allowing even big jets of water and total immersion. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. Features - Displays actual level, switch points, status and preset value. - Switch points and preset value can be set by the operator or being password protected. - Level: six large 17mm (0.67) digits. - Selectable on-screen engineering units for level: L, m³, GAL, USGAL, kg, lb, bbl or no unit. - Auto backup of all settings. - Ambient temperature: -40°C to +80°C (-40°F to 176°F). - Easy configuration with clear alphanumerical display. - Various accessories are available for this product. Applications - Very suitable when the required level changes frequently (e.g. for emptying a well or tank). - The D-Series is a DIN-sized display and the better alternative for your existing, not waterproof, front panel mount indicators in extreme weather outdoor applications or e.g. in food industries where working environments are often cleaned with powerful water jets.
