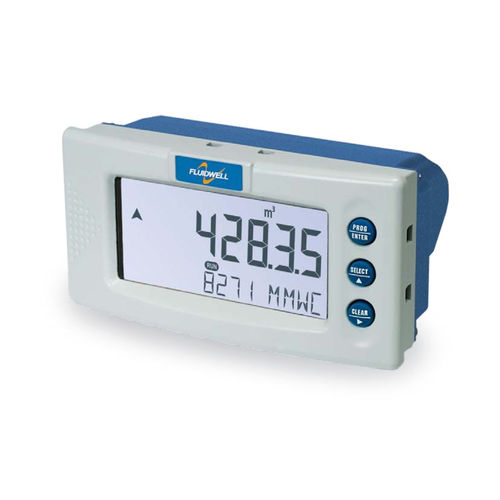

Panel-mount level controller D077

with alarm functionfor storage tanks

The D077 is a versatile, panel mount level indicator / monitor with linearization and continuous level monitoring feature. In addition to the average Span, eight linearization points can be entered to compensate for the tankshape. The unit will interpolate between these points to increase the accuracy. This linearization affects all displayed information as well as the alarm output. With the level monitoring feature, one low level and one high level alarm value can be set. Advantages - Unique, robust IP66, IP67 (NEMA Type4X) panel mount front enclosure made of die cast aluminum, allowing even big jets of water and total immersion. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. Features - Displays level, height and percentage filled. - Eight point linearization of the tank shape - with interpolation. - Level: six large 17mm (0.67) digits. - Selectable on-screen engineering units; volumetric or mass. - Auto backup of all settings. - Ambient temperature: -40°C to +80°C (-40°F to 176°F). - Easy configuration with clear alphanumerical display. - Various accessories are available for this product. Applications - The D077 fits in level measurement applications where continuous level monitoring and linearization of the tankshape is important. - The D-Series is a DIN-sized display and the better alternative for your existing, not waterproof, front panel mount indicators in extreme weather outdoor applications or e.g. in food industries where working environments are often cleaned with powerful water jets.
