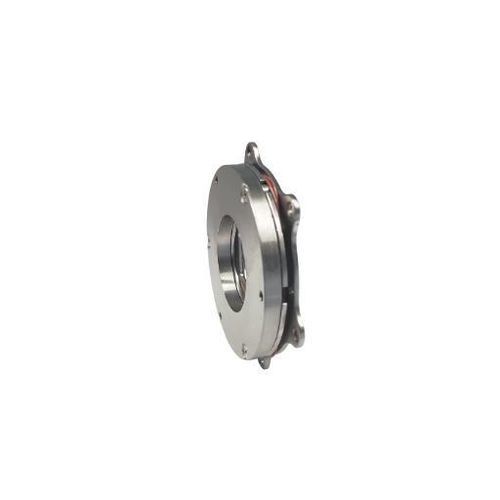

Disc brake unit

mechanicalfor collaborative robotscompact

Description
Compact brake mechanism engineered for robot joint assemblies where axial envelope and holding force must be balanced. The thin axial profile (≤9.5 mm) and low switching voltages facilitate integration into constrained joint spaces and reduce electrical demand inside the joint.

Technical summary
Designed to provide reliable hold in limited axial space: maximum thickness ≤ 9.5 mm, opening voltage < 24 V, holding voltage < 7 V and braking force ≥ 4.2 Nm.

Applications

• Integration into robot arm joint modules and rotary axes with limited axial space.
• Position holding during power loss and static positioning of articulated assemblies.
• Use in industrial, lightweight and collaborative robot designs where low-voltage operation and compact form factor are required.

Specifications

• Maximum thickness (axial envelope): ≤ 9.5 mm
• Opening voltage: < 24 V
• Holding voltage: < 7 V
• Braking force / torque: ≥ 4.2 Nm
• Intended function: balance axial footprint and holding power while minimizing electrical demand in the joint
