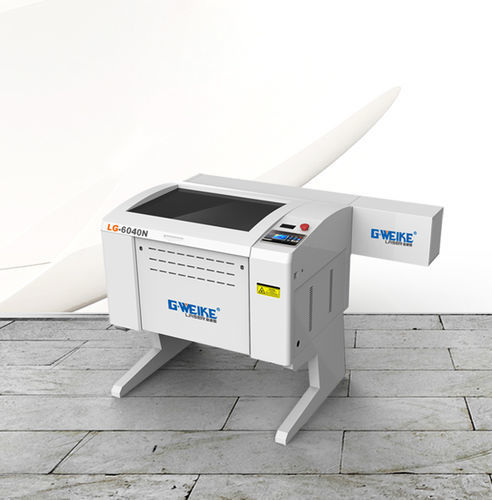

CO2 laser cutting and engraving machine LG6040N

2D lasertextilefor acrylics

Overview
The LG6040N CO2 laser cutting and engraving machine is a compact industrial solution for processing non-metal materials. Designed for small workshops and production cells, it combines an automated working table and autofocus with industrial-grade components for repeatable precision and efficient throughput.

Main Features

• Motorized electronic lifting: adjustable working table to accommodate different material thicknesses, lifting height up to 20 cm.
• Automatic focusing: laser head autofocus for fast and accurate focal-length adjustment without manual intervention.
• Taiwan Hiwin linear guide rails: high positioning accuracy and reduced wear for sustained precision.
• RECI CO2 laser tube: concentrated beam, high output power density, narrow mark line and high cutting/engraving speed.
• WIFI control: remote machine monitoring and parameter adjustment; one PC can manage multiple machines.
• II-VI optical lenses (U.S.): high transmittance aspheric focusing lenses for improved beam transmission and durability.
• Leadshine stepper motors: low noise and vibration, higher torque and acceleration for smooth, accurate motion.
• One-button fan start: independent exhaust fan control with single-button activation.
• Double platforms: knife-edge and honeycomb tables supplied for cutting and engraving tasks.
• High-efficiency air filtration (three-stage): suitable for indoor operation.

Air Filtration - Tertiary Filtration

• Primary filtration: capture large particles in collection bags.
• HEPA filtration: captures particles larger than 0.03 μm.
• Activated carbon adsorption: removes odors and organic gases.

Application Industry
Suitable for wood, acrylic (organic glass), plastics, textiles, paper, leather, rubber and other non-metallic materials used in prototyping, signage, packaging and small-series production.

Technical Parameters
Laser Type: Sealed CO2 laser tube
Laser Power: 40W / 60W / 80W (optional)
Engraving Area: 600 mm × 400 mm
Worktable: Motorized up-down table (electronic lifting, up to 20 cm)
Machine Dimensions: 1360 × 850 × 950 mm
Engraving/Cutting Speed: 0–36,000 mm/min
Positioning Accuracy (repeatability): ±0.05 mm
Working Voltage: AC 110–220 V ±10%, 50–60 Hz
Gross Power: <1000 W
Operating Temperature: 0–45 °C
Operating Humidity: 5–95%
Minimum Shaping Character: English 1 × 1 mm
Supported Graphic Formats: BMP, PLT, DST, DXP, AI
Driving System: Stepper motors (Leadshine)
Cooling Mode: Water-cooling and protection system
Auxiliary Equipment: Exhaust fans, air-exhaust pipe
Control System: DSP control system
Compatible Software: CorelDraw, AutoCAD, Photoshop

Specifications

• Model: LG6040N
• Laser Type: Sealed CO2 tube
• Available Power: 40W / 60W / 80W
• Work Area: 600 × 400 mm
• Table: Motorized up-down (electronic lifting)
• Overall Size: 1360 × 850 × 950 mm
• Max Speed: 36,000 mm/min
• Positioning Accuracy: ±0.05 mm
• Power Supply: AC 110–220 V ±10%, 50–60 Hz
• Total Power Consumption: <1000 W
• Cooling: Water cooling with protection
• Included: Exhaust fans, exhaust pipe, DSP controller
