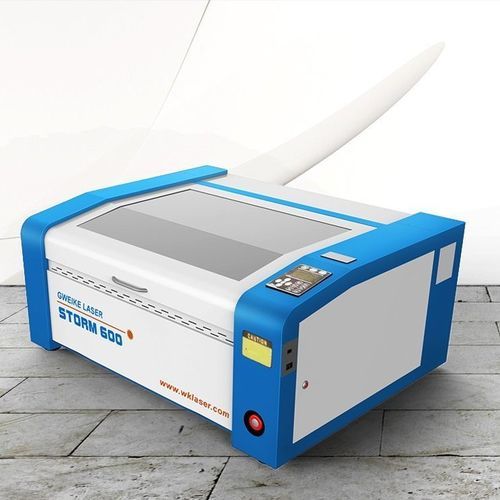

CO2 laser engraving machine STORM600

woodpaperleather

Overview
Desktop-friendly chassis with a 600×400 mm bed that accommodates most signage, craft and personalization tasks while fitting into small studios and compact workshops.

Key Features

• Manual Z Table, Autofocus Optional: Manual up-down table adapts to fixtures and material stacks. Optional autofocus sets focal distance in one touch when changing thicknesses, improving repeatability between shifts.
• Stable 40–60 W CO₂ Tube: Consistent beam quality for precise engraving and clean cutting. With appropriate optics and airflow, acrylic edges are glossy and wood/MDF show defined detail. Tube options: 40 W or 60 W.
• Smooth Motion & Safety Interlocks: Stepper-driven axes deliver smooth acceleration and accurate positioning for fine features. Door sensors and E-stop support safer operation in training and production environments.
• Tidy Exhaust: Independent fan control reduces idle running and keeps the workspace clear.
• High-Quality Optics: Durable focusing lenses and mirrors ensure stable transmission and longer service intervals.
• Double Platforms: Honeycomb platform for engraving and small parts; knife-blade platform for thicker sheets to reduce back-reflection and staining.
• High Efficiency Air Filters: Three-stage filtration: bag pre-filter (large particles) → HEPA ≥ 0.3 µm → activated carbon adsorption.

Technical Parameters
Laser – Type: Sealed CO₂ laser tube
Laser Power: 40 W / 60 W (optional)
Working Area: 600 mm × 400 mm
Whole Machine Size: 1430 × 1036 × 796 mm
Engraving Speed: 0 – 48,000 mm/min
Resetting Positioning Accuracy: ±0.05 mm
Working Voltage: AC 110–220 V ±10%, 50–60 Hz
Gross Power: < 1,200 W
Operating Temperature: 0–45 °C
Operating Humidity: 5–95%
Minimum Shaping Character: English 1 × 1 mm
Work Table: Manual up-down table
Driving System: Stepper
Cooling Mode: Water-cooling and protection system
Auxiliary Equipments: Exhaust fans, air-exhaust pipe
Controlling Software: DSP control system
Compatible Software: LightBurn / RDWorks / CorelDraw / AutoCAD / Photoshop

Application Industry
Designed for non-metal applications such as acrylic signage and lightboxes, wood crafts and latticework, leather patches and personalized gifts, paper prototyping and small-batch packaging.

FAQ (selected)

• Q1: How thick can it cut? — Typical windows: acrylic ~10–12 mm; wood ~8–10 mm; MDF ~6–8 mm. Results depend on material density, optics and assist air.
• Q2: Does it support LightBurn? — Yes. LightBurn and RDWorks import AI/DXF/SVG/PDF and manage parameters by layers.
• Q3: What filtration is recommended? — Three-stage filtration (pre-filter → HEPA ≥ 0.3 µm → activated carbon). Size the airflow and replacement cycles to your usage.
• Q4: Can I engrave cylinders? — A rotary attachment is available for bottles and cups. Confirm Z-height and fixture clearance.
• Q5: How do I keep results consistent? — Clean lenses and mirrors regularly; maintain chiller at 18–22 °C; standardize material presets and share across shifts.

Caractéristiques / Spécifications techniques

• Model: STORM600
• Brand: GWEIKE
• Laser type: Sealed CO₂ laser tube
• Available laser power: 40 W or 60 W (optional)
• Working area (bed): 600 × 400 mm
• Machine dimensions: 1430 × 1036 × 796 mm
• Engraving speed: up to 48,000 mm/min
• Positioning accuracy (reset): ±0.05 mm
• Power supply: AC 110–220 V ±10%, 50–60 Hz
• Cooling: Water-cooling and protection system
• Work table: Manual up-down table; autofocus optional
• Control: DSP control system; compatible with LightBurn, RDWorks, CorelDraw, AutoCAD, Photoshop
• Filtration: Three-stage (pre-filter → HEPA ≥0.3 µm → activated carbon)
