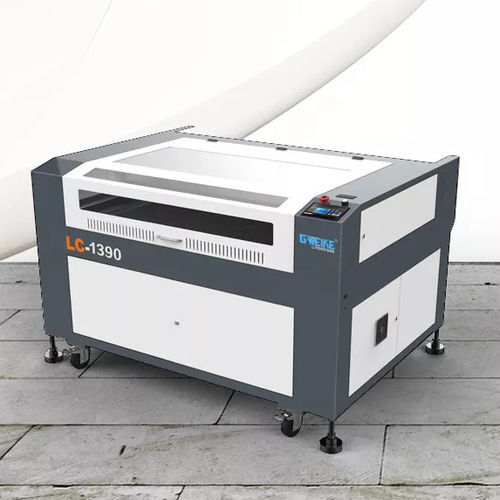

CO2 laser cutting machine LC1390

for acrylicsfor MDFfor plastics

Product
Medium-format sealed CO2 laser cutting machine LC1390 for non-metal materials. Cutting area 1300×900 mm, available in 80W / 130W / 150W configurations, with motorized Z travel and automatic focusing for repeatable precision in industrial production environments.

Electronic lifting
Motorized Z travel up to ~180 mm accommodates taller fixtures and variable material thicknesses while maintaining process stability and repeatability.

Automatic Focusing
Automatic focus system positions the laser head quickly and accurately, eliminating manual focal adjustments to save setup time and reduce operator error.

Taiwan Hiwin Linear Guide Rail
High-quality linear guides ensure smooth, repeatable motion for fine features and consistent cut quality. Industrial-grade limit and safety components provide reliable triggering and extended service life.

Japan OMRON Electronic Component
Industrial electronic components from Japan OMRON support stable control and long-term reliability under continuous production use.

RECI Laser Tube
Sealed CO2 laser tube by RECI delivers stable beam quality and focused energy density for glossy acrylic edges and precise engraving when combined with correct airflow and lens maintenance.

Key components / Accessories

• WIFI Control: Remote control of PCs and machines; one PC can manage multiple units and adjust parameters remotely.
• U.S II-VI Optical Lenses: High-focus, high-transmittance aspheric focusing lenses (II-VI) offering improved beam transmission vs. standard optics.
• Leadshine Stepper Motor: Reduced noise and vibration with higher torque, acceleration and positioning precision.
• One Button Starting Fan: Independent fan start and control for ventilation management.
• Double Platforms: Knife blade and honeycomb platforms suitable for cutting and engraving operations.
• High Efficiency Air Filters: Indoor-safe, low-emission filtration with a three-stage system:

• Bag filter for large particles.
• HEPA filtration for particles ≥0.03 µm.
• Activated carbon adsorption stage for odors and gases.

Application Industry
Designed for acrylic signage and lightboxes, wood crafts and latticework, MDF displays, leather goods and personalized items, paper prototyping and small-batch packaging — for non-metal materials across manufacturing and fabrication shops.

Technical Parameters
Laser - Type: Sealed CO2 laser tube
Laser Power: 80W, 130W, 150W
Cutting Area: 1300×900 mm
Whole Machine Size: 1800×1350×1050 mm
Cutting Speed: 0 - 24,000 mm/min
Resetting Positioning Accuracy: ±0.02 mm
Working Voltage: AC 110-220V ±10%, 50-60Hz
Gross Power: <1,500 W
Operating Temperature: 0-45 °C
Operating Humidity: 5-95%
Minimum Shaping Character: English 1×1 mm
Work Table: 18 cm lift platform
Driving System: Stepper
Cooling Mode: Water-cooling and protection system
Auxiliary Equipments: Exhaust-fans, air-exhaust pipe
Controlling Software: DSP control system
Compatible Software: CorelDraw, AutoCAD, Photoshop

Specifications / Technical specifications

• Laser - Type: Sealed CO2 laser tube
• Laser Power: 80W; 130W; 150W
• Cutting Area: 1300×900 mm
• Whole Machine Size: 1800×1350×1050 mm
• Cutting Speed: 0 - 24,000 mm/min
• Resetting Positioning Accuracy: ±0.02 mm
• Working Voltage: AC 110-220V ±10%, 50-60Hz
• Gross Power: <1,500 W
• Operating Temperature: 0-45 °C
• Operating Humidity: 5-95%
• Minimum Shaping Character: English 1×1 mm
• Work Table: 18 cm lift platform
• Driving System: Stepper
• Cooling Mode: Water-cooling and protection system
• Auxiliary Equipments: Exhaust-fans, air-exhaust pipe
• Controlling Software: DSP control system
• Compatible Software: CorelDraw, AutoCAD, Photoshop
