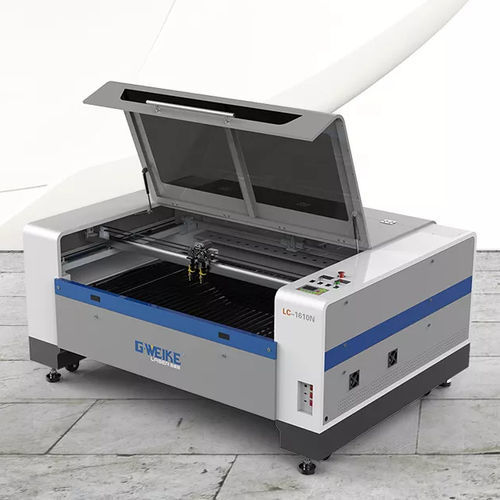

CO2 laser cutting machine LC1610N
2D laser2-beam laserfor ceramics

CO2 laser cutting machine - LC1610N - GWEIKE LASER - 2D laser / 2-beam laser / for ceramics
CO2 laser cutting machine - LC1610N - GWEIKE LASER - 2D laser / 2-beam laser / for ceramics
Add to favorites
Compare this product

Characteristics

Technology
CO2 laser, 2D laser, 2-beam laser
Material
for plastics, for rubber, for acrylics, for wood, for fabrics, for leather, for marble, for paper, for glass, for ceramics
Product handled
panel, sheet
Control type
with control software
Associated function
engraving
Phase
single-phase
Configuration
double table, multi-head, floor track
Other characteristics
automatic, high-precision, high-speed, with water cooling
X travel

1,600 mm
(62.99 in)

Y travel

1,000 mm
(39.37 in)

Maximum cutting height

200 mm
(7.9 in)

Cutting speed

Max.: 0.6 m/s
(1.969 ft/s)

Min.: 0 m/s
(0 ft/s)

Laser power

Max.: 150 W

Min.: 80 W

Repeatability

0.1 mm
(0.0039 in)

Power supply

Max.: 231 V

Min.: 209 V

Description

Overview
Dual laser heads provide productivity equivalent to two CO2 laser cutting machines. Electronic lifting with 20 cm stroke adapts to varying material thicknesses. Automatic focusing enables fast, accurate focal adjustment without manual intervention. Taiwan Hiwin linear guide rails and Leadshine stepper motors ensure high positioning precision and low vibration. Japan OMRON electronic components provide stable control. WIFI-enabled control supports remote monitoring and multi-machine management from one PC. Advanced optical components and a multi-stage air filtration system make the machine suitable for indoor production environments.

Key Components & Features
  • Dual laser heads (improved productivity)
  • Electronic lifting (up to 20 cm)
  • Automatic focusing
  • Taiwan Hiwin linear guide rail
  • Japan OMRON electronic components
  • WIFI control (remote control and multi-machine management)
  • U.S. II-VI optical lenses (high-transmittance, gold-plated, aspheric)
  • Leadshine stepper motor (high torque, low vibration)
  • One-button fan start
  • Double platforms: knife blade and honeycomb
  • High-efficiency air filtration: particle bag filter, HEPA >0.03 μm, activated carbon adsorption


Application Industry
  • Wood
  • Bamboo
  • Jade
  • Marble
  • Organic glass (acrylic)
  • Crystal
  • Plastic
  • Garments
  • Paper
  • Leather
  • Rubber
  • Ceramic
  • Glass
  • Other non-metal materials


Technical Parameters
  • Laser type: Sealed CO2 laser tube
  • Laser power options: 80W / 100W / 130W / 150W (optional)
  • Working area: 1600 × 1000 mm
  • Cutting speed: 0–36000 mm/min
  • Work platform: Crawler type work platform
  • Positioning accuracy: ±0.1 mm
  • Control system: DSP control system (USB mode)
  • Cooling mode: Constant temperature water-cooling
  • Working voltage: AC 220V ±5% / 50Hz
  • Graphic formats supported: AI, BMP, PLT, DXF, DST
  • Operating temperature: 0°C–40°C
  • Operating humidity: Free of condensed water
  • Gross power consumption: ≤2000 W


Model / Specifications
  • Model: LC1610N
  • Available laser power: 80W / 100W / 130W / 150W
  • Working area: 1600 × 1000 mm
  • Positioning accuracy: ±0.1 mm
  • Cooling: Constant temperature water-cooling
  • Supported formats: AI, BMP, PLT, DXF, DST
