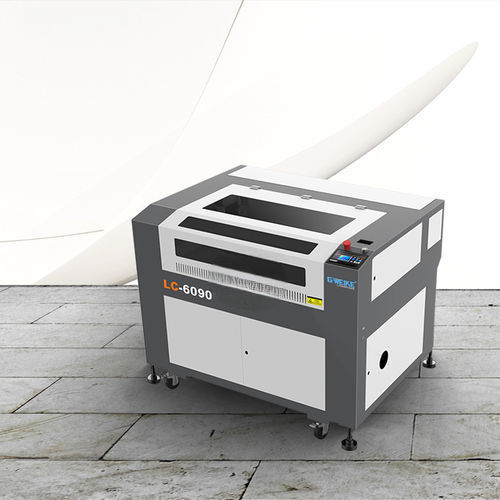

CO2 laser cutting machine LC6090

textilefor PMMAfor acrylics

Overview
The LC6090 is a CO2 laser cutting machine for crafts and small-business production, designed for precise cutting and engraving of non-metal materials. It integrates automated lifting, auto-focusing and industrial-grade components for consistent performance in small production runs.

Key Features

• Electronic lifting: Automatic worktable adjustment up to 200 mm to accommodate different material thicknesses.
• Automatic Focusing: Fast auto-focus system for reduced setup time and improved cutting accuracy.
• Taiwan Hiwin Linear Guide Rail: High positioning accuracy and reduced wear for extended precision.
• Japan OMRON Electronic Component: Reliable control components for stable operation.
• RECI Laser Tube: High output power density and uniform beam for efficient cutting and clear marking.
• WIFI Control: Remote parameter adjustment and multi-machine management from a PC.
• U.S II-VI Optical Lenses: Gold-plated aspheric lenses for improved beam transmission and long-term optical performance.
• Leadshine Stepper Motor: Low noise, reduced vibration, higher torque and precise motion control.
• One Button Starting Fan: Independent fan control with one-button operation.
• Double Platforms: Knife-blade and honeycomb platforms for cutting and engraving versatility.
• High Efficiency Air Filters: Multi-stage filtration (bag, HEPA & activated carbon) suitable for indoor use.

Application Industry
Suitable for cutting and engraving wood, acrylic (PMMA), plastics, textiles, paper, leather, rubber and other non-metal materials used in crafts, signage and prototype production.

Technical Parameters

• Laser Type: Sealed CO2 laser tube
• Laser Power: 60W / 80W / 130W
• Cutting Area: 900 mm x 600 mm
• Whole Machine Size: 1360 x 1010 x 1070 mm
• Cutting Speed: 0 - 60000 mm/min
• Resetting Positioning Accuracy: ±0.05 mm
• Working Voltage: AC 110 - 220V ±10%, 50-60Hz
• Gross Power: less than 1000 W
• Operating Temperature: 0 - 45 °C
• Operating Humidity: 5 - 95%
• Minimum Shaping Character: English 1 x 1 mm
• Graphic Format Supported: BMP, PLT, DST, DXP, AI
• Driving System: stepper
• Cooling Mode: water-cooling and protection system
• Auxiliary Equipment: exhaust fans, air-exhaust pipe
• Controlling Software: DSP control system
• Compatible Software: CorelDraw, AutoCAD, Photoshop
