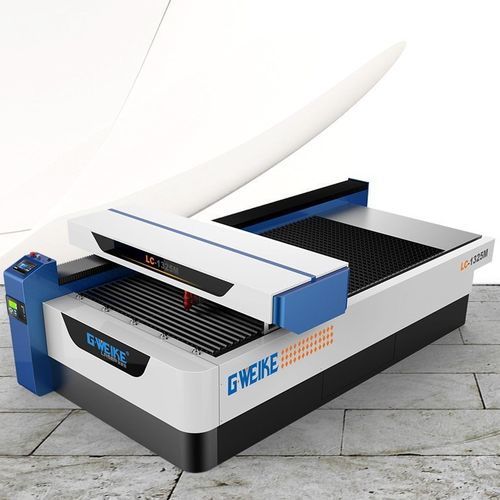

CO2 laser cutting machine LC1325M

for acrylicsfor fabricsfor stainless steel

Overview
LC1325M is a large-format CO2 laser cutting machine designed for acrylic, wood, leather, fabric, paper and selected thin-metal applications. With a 1250 × 2500 mm working area, servo-driven motion system and Au3tech capacitive auto-focus height controller, it standardizes mixed-material cutting and engraving workflows in industrial workshops.

Built for Large-Format Mixed-Material Processing
LC1325M is suitable for workshops processing

• Acrylic
• Wood
• Leather
• Fabric
• Paper

Selected thin-metal applications require sample testing and confirmation of material type, thickness and process configuration.

Key Features & Engineering

• Taiwan TBI ball screw transmission for high efficiency, low heat and stable accuracy across the 2500 mm travel
• Panasonic servo motor drive system for precise motion control and long operating life
• Au3tech capacitive auto-focus height controller for fast, accurate focusing without manual adjustment
• Yongli 300W beam-combination CO2 laser tube with continuously adjustable power (50–300W) to match material requirements

Materials & Application Industries
Material Type: Acrylic and plastics
Examples: Acrylic sheet, signage and display materials
Processing Notes: Common CO2 laser cutting and engraving applications for advertising, display and creative production.

Material Type: Wood and paper
Examples: MDF, plywood, paperboard, packaging materials
Processing Notes: Suitable for cutting, engraving, packaging samples and wood-based products.

Material Type: Soft materials
Examples: Leather, fabric and garment materials
Processing Notes: Suitable for cutting and engraving workflows requiring a large processing area.

Material Type: Selected thin metal
Examples: Thin stainless or carbon steel samples depending on configuration
Processing Notes: Metal cutting capability must be verified by sample testing considering material, thickness and configuration.

Processing Samples
Typical samples include acrylic parts, non-metal laser-cut items, mixed-material assemblies and large-format engraved panels.

Specifications

• Model: LC1325M
• Working Area: 1250 × 2500 mm
• Laser Tube: Yongli 300W beam-combination CO2 laser tube
• Power Adjustment: 50–300W continuously adjustable
• Transmission System: Taiwan TBI ball screw
• Motor System: Panasonic servo motor
• Auto Focus: Au3tech capacitive height controller
• Machine Size: 3930 × 1869 × 1250 mm
• Positioning Accuracy: ±0.05 mm/m
• Positioning Speed: 20 m/min
• Power Supply: 220V ±10% / 10A
• Main Materials: Acrylic, wood, leather, fabric, paper and selected thin-metal applications after sample confirmation
