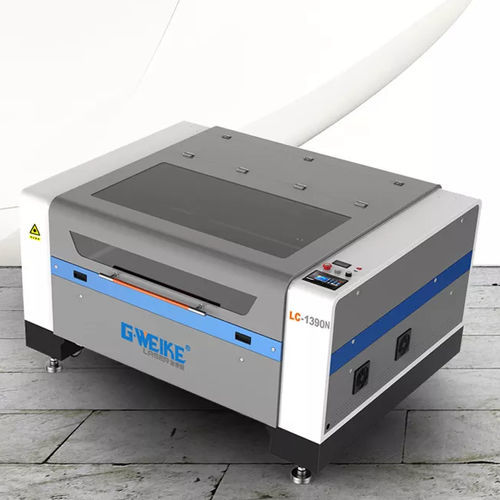

CO2 laser cutting and engraving machine LC1390N

2D laserfor acrylicsfor MDF

Overview
Industrial CO2 laser cutter and engraver for non-metal materials, featuring a 1300 × 900 mm work area, motorized 180 mm Z-lift with one-touch autofocus, and optional sealed RECI CO2 tubes (80–150 W). Designed for repeatable production cutting and engraving of acrylic, wood, MDF, leather, paper and small-batch packaging, with four-side pass-through for oversized or long panels.

Key Features

• Electronic lifting: 180 mm motorized Z travel adapts to material thickness and fixtures; one-touch autofocus minimizes manual setup.
• Automatic focusing: Consistent focal distance for improved throughput and cross-shift repeatability.
• Four-side pass-through doors: Support for oversized workpieces and step-cutting of long panels.
• HIWIN linear guides (Taiwan): Rolling-element guides for high positioning accuracy and low wear.
• OMRON safety & limit components: Industrial-grade components for reliable triggering and extended service life.
• RECI sealed CO2 laser tube (optional 80/100/130/150 W): Stable beam and high focal energy density for polished acrylic edges and crisp engraving.
• Wi‑Fi control: Remote parameter review and diagnostics; one PC can manage multiple machines.
• II‑VI optical lenses & gold-plated mirrors: High-transmittance aspheric focusing lenses and mirrors for improved beam transmission.
• Leadshine stepper motors: Low noise, smooth acceleration and reliable positioning.
• One-button exhaust fan: Independent fan control to avoid idle running and manage extraction.
• Double platforms: Honeycomb table for engraving/small parts and knife-blade table for thicker sheets to reduce back-reflection and staining.
• Optional high-efficiency filtration: Three-stage system — bag pre-filter → HEPA ≥ 0.3 μm → activated carbon adsorption; airflow and filter cycle configurable to duty and material.

Application Industry
Suitable for acrylic signage and lightboxes, woodcraft and lattice work, MDF display fixtures, leather goods and personalized gifts, paper prototyping and short-run packaging across non-metal applications where repeatability and edge quality are required.

Technical Parameters
Laser – Type: Sealed CO2 laser tube
Laser Power: 80 W / 100 W / 130 W / 150 W (optional)
Work Area: 1300 mm × 900 mm
Machine Size: 1880 × 1549 × 1075 mm
Max Cutting Speed: 0–24,000 mm/min
Repeatability: ±0.05 mm
Power Supply: AC 110–220 V ±10%, 50–60 Hz
Total Power: < 1,500 W
Operating Temperature: 0–45 °C
Operating Humidity: 5–95%
Minimum Character: English 1 × 1 mm
Work Table: 180 mm lift platform
Drive System: Stepper
Cooling: Water-cooling with protection
Auxiliary: Exhaust fan and air duct
Control: DSP control system
Compatible Software: LightBurn / RDWorks / CorelDRAW / AutoCAD / Photoshop

Technical Specifications

• Model: LC1390N
• Work area: 1300 × 900 mm
• Laser tube type: Sealed CO2 (RECI)
• Available laser power: 80 W / 100 W / 130 W / 150 W
• Z-lift (motorized): 180 mm with autofocus
• Max cutting speed: up to 24,000 mm/min
• Position repeatability: ±0.05 mm
• Power supply: AC 110–220 V ±10%, 50–60 Hz
• Cooling method: Water-cooling with protection
• Control system: DSP
• Compatible software: LightBurn, RDWorks, CorelDRAW, AutoCAD, Photoshop
• Optional filtration: 3-stage (pre-filter → HEPA ≥0.3 μm → activated carbon)
