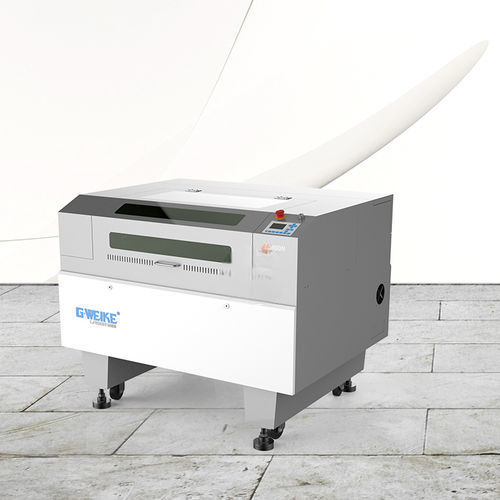

CO2 laser cutting machine LG900N

for ceramicsfor PMMAfor acrylics

Product
LG900N - CO2 laser cutting machine for small factories. Suitable for cutting and engraving a wide range of non-metal materials with a working area of 900×600 mm and laser power options of 60W or 80W.

Key features

• Electronic lifting: Automatic adjustment of the worktable up to 200 mm to accommodate different material thicknesses and optimize cutting distance.
• Automatic focusing: Fast, automatic focal positioning for consistent cutting accuracy without manual focal adjustment.
• Taiwan Hiwin linear guide rail: High positioning precision and reduced wear for longer-term stable accuracy.
• Japan OMRON electronic components: Reliable control electronics for stable machine operation.
• RECI laser tube: High output power density and concentrated beam for fast cutting, narrow kerf and high marking resolution.

Accessories and key components

• WIFI control: Remote access for engineers to adjust parameters and troubleshoot; one PC can manage multiple machines.
• U.S. II-VI optical lenses: High-transmittance aspheric and gold-plated lenses from II-VI for improved beam transmission and long optical life.
• Leadshine stepper motor: Reduced noise and vibration, higher torque and improved positioning performance.
• One-button fan: Independent fan control for ventilation with single-button start.
• Double platforms: Knife blade and honeycomb platforms for cutting and engraving flexibility.
• High efficiency air filters: Enables indoor use with minimal pollution
  • Tertiary filtration
  • Bag filtration for large particles
  • HEPA filtration for particles >0.03 μm
  • Activated carbon adsorption system

Application industry

• Wood
• Bamboo
• Jade
• Marble
• Acrylic / PMMA
• Crystal
• Plastic
• Garments
• Paper
• Leather
• Rubber
• Ceramic
• Glass
• Other non-metal materials

Technical parameters

• Laser type: Sealed CO2 laser tube
• Laser power: 60W (standard), 80W (optional)
• Working area: 900 mm × 600 mm
• Cutting speed: 0-30000 mm/m
• Work platform: Crawler type work platform
• Working speed: Adjustable
• Position accuracy: ±0.5 mm
• Control system: DSP control system (USB mode)
• Cooling mode: Constant temperature water-cooling
• Working voltage: AC220V ±5% / 50Hz
• Graphic formats supported: AI, BMP, PLT, DXF, DST
• Operating temperature: 0°C - 45°C
• Operating humidity: Free of condensed water
