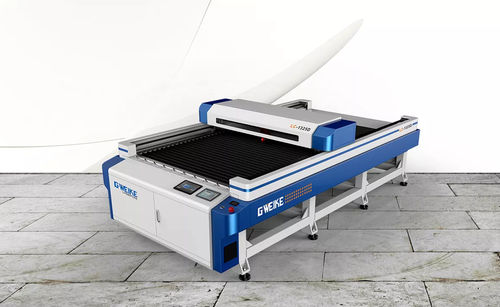

CO2 laser cutting machine LC1325D

textilefor acrylicsfor wood

Product
LC1325D CO2 laser cutter designed for large sheet materials, offering a 1300 × 2500 mm working area with sealed CO2 tube power options from 60W to 150W.

Main Features

• Taiwan Hiwin linear guide rail for high positioning accuracy and long-term stability.
• Japan OMRON electronic components for reliable control and extended service life.
• RECI sealed CO2 laser tube: concentrated beam, high output density, precise cutting and engraving.
• WIFI control: remote monitoring, parameter adjustment and multi-machine control from a single PC.
• II-VI aspheric gold-coated focusing lens for improved beam transmission and long optical life.
• Leadshine stepper motors with low noise, reduced vibration, high torque and smooth motion.
• One-button fan start with independent control for exhaust management.
• Double platforms: knife-bed and honeycomb table to support both cutting and engraving workflows.
• High-efficiency multi-stage air filtration:
  • Particle bag for large particles
  • HEPA filtration for particles >0.03 µm
  • Activated carbon adsorption for fumes and odors

Application Industry
Suitable for cutting and engraving textiles, leather, wood, acrylic, paper and other large-sheet substrates. Typical applications include garment and upholstery cutting, signage, model-making and packaging production.

Technical Parameters

• Model: LC1325D
• Laser type: Sealed CO2 laser tube
• Laser power (optional): 60W, 80W, 100W, 130W, 150W
• Cutting area: 1300 × 2500 mm
• Whole machine size: 3520 × 1940 × 1300 mm
• Cutting speed: 0–24,000 mm/min
• Positioning accuracy: ±0.1 mm
• Power supply: AC 110–220V ±10%, 50/60 Hz
• Gross power: <1,500 W
• Operating temperature: 0–45 °C
• Operating humidity: 5–95%
• Minimum shaping character: English 1 × 1 mm
• Graphic formats supported: BMP, PLT, DST, DXP, AI
• Driving system: Stepper motors
• Cooling mode: Water-cooling with protection system
• Auxiliary equipment: Exhaust fans, air-exhaust pipe
• Controlling software: DSP control system; Compatible with CorelDraw, AutoCAD, Photoshop

Characteristics / Technical specifications

• Model: LC1325D
• Laser type: Sealed CO2 laser tube
• Available laser power options: 60W, 80W, 100W, 130W, 150W
• Work area: 1300 × 2500 mm
• Machine dimensions: 3520 × 1940 × 1300 mm
• Max cutting speed: 24,000 mm/min
• Positioning accuracy: ±0.1 mm
• Power supply: AC 110–220V ±10%, 50/60 Hz
• Cooling: Water-cooling with protection
• Control: DSP control system; compatible with CorelDraw, AutoCAD, Photoshop
• Supported formats: BMP, PLT, DST, DXP, AI
• Filtration: Multi-stage (particle bag, HEPA >0.03 µm, activated carbon)
