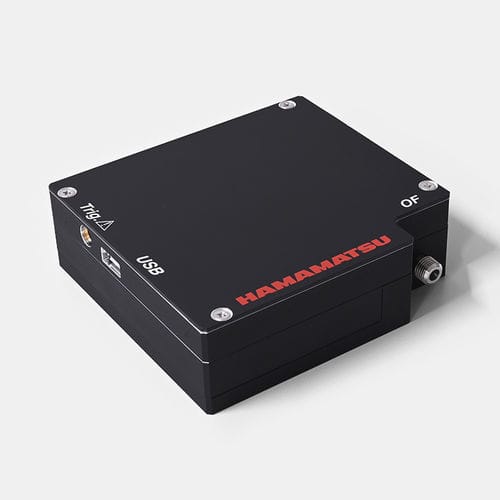

CMOS mini spectrometer C16449MA-01

compacthigh-sensitivityUSB

Product overview
The mini-spectrometer WS series C16449MA-01 is a compact polychromator integrating optical elements, a linear image sensor and driver electronics in a thin housing. Measurement light is coupled via an optical fiber and spectrum data are transferred to a PC over USB. The built-in high-sensitivity CMOS sensor provides CCD-equivalent sensitivity with low power consumption. Custom spectral response ranges and resolutions are available on request. A hardware trigger supports short integration times for pulsed emission measurements.

Software & integration
Free evaluation software is provided for configuring measurement parameters, acquiring and saving spectra, and visualizing data. DLL specifications are published to enable development of custom measurement applications and seamless integration into laboratory or production systems.

Features

• Wide spectral response: 190–1100 nm
• High spectral resolution (typ. 1 nm FWHM)
• Customizable spectral range and resolution (optional)
• High-sensitivity CMOS linear image sensor (CCD-equivalent sensitivity)
• Trigger function for pulsed-light measurements
• USB bus powered (no external power supply required)

Technical specifications

• Spectral response range: 190 to 1100 nm
• Spectral resolution (FWHM) (typ.): 1 nm
• Spectral resolution (FWHM) (max.): 2 nm
• Cooling: Non-cooled
• A/D resolution: 16 bits
• Interface: USB 2.0
• Built-in sensor: High-sensitivity CMOS linear image sensor
• Total pixels: 2048 pixels
• Measurement condition: Typical Ta=25 °C unless otherwise noted
