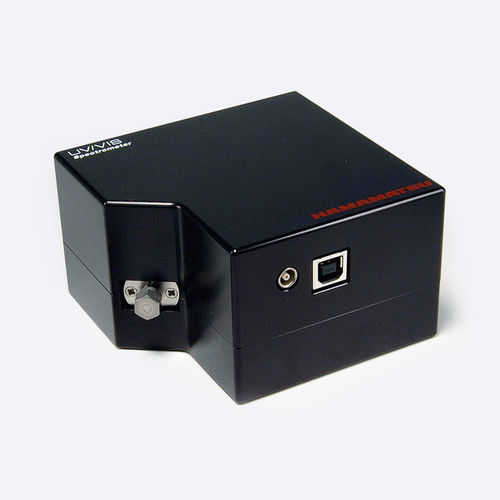

CCD mini spectrometer C11697MB

CMOSfor industrial applicationsfor LED lighting

Overview
The C11697MB is a compact polychromator integrating optical components, a high-sensitivity CMOS image sensor and a driver circuit. Light is delivered via optical fiber to the TM-series entrance port; the measured spectrum from the built-in sensor is sent to a PC over USB 2.0 for acquisition. The device supports short integration times via a trigger input, enabling measurement of pulsed emission sources and fast readout suitable for production-line LED testing. Evaluation software is provided; DLL specifications are disclosed for custom software integration.

Features

• Integrated high-sensitivity CMOS image sensor comparable to CCD performance
• Trigger input for short-time integration and pulsed-light measurements
• High-speed readout (~2 ms)
• Simultaneous charge-integration type detector
• Wavelength conversion factor stored in internal memory
• USB 2.0 interface for data output to PC
• Included evaluation software; DLL specification available for OEM/custom integration

Measurement and usage
Connect the measurement light to the TM-series entrance port using an optical fiber. Typical ambient condition for specifications: Ta = 25 °C unless otherwise noted. The built-in trigger and fast readout allow emission spectra acquisition from pulsed light sources and short integration intervals. Evaluation software enables setting measurement parameters, acquiring and saving spectral data and displaying graphs; custom applications can use the provided DLL specification for direct control and data retrieval.

Specifications (table)

• Spectral response range: 320 to 1000 nm
• Spectral resolution (FWHM) typical: 5 nm — maximum: 8 nm
• Cooling: non-cooled
• A/D resolution: 16 bits
• Interface: USB 2.0
• Built-in sensor: high-sensitivity CMOS (2048 total pixels)
• Readout speed: approx. 2 ms
• Functions: trigger function; simultaneous charge integration
• Measurement condition: Typ. Ta = 25 °C (unless otherwise noted)

Technical specifications

• Model: C11697MB
• Spectral response range: 320 to 1000 nm
• Spectral resolution (FWHM): typical 5 nm, maximum 8 nm
• Detector: high-sensitivity CMOS image sensor, 2048 pixels total
• A/D resolution: 16 bits
• Readout speed: high-speed readout approx. 2 ms
• Cooling: none (non-cooled)
• Interface: USB 2.0
• Measurement features: trigger function for pulsed-light measurements; simultaneous charge integration
• On-board memory: wavelength conversion factor recorded in internal memory
• Software: supplied evaluation software for measurement control and data saving; DLL specification provided for custom integration
