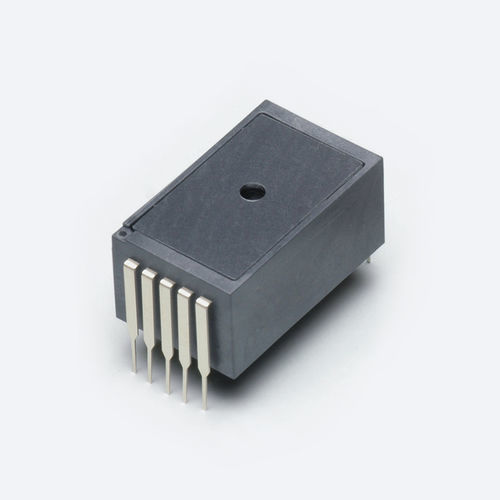

UV-visible mini spectrometer C10988MA-01

opticalCMOSultracompact

Overview
The MS series are thumb-sized spectrometer heads developed for integration into portable and mobile measurement systems. By combining MEMS-based optics and a CMOS linear image sensor with a nanoimprinted grating, the MS series delivers an ultra-compact spectrometer head suitable for space- and weight-constrained applications.

Features

• Compact thumb-size: 27.6 × 16.8 × 13 mm
• Lightweight: 9 g
• Spectral response: 340–750 nm
• Spectral resolution (stated): 14 nm (FWHM max), typ. 12 nm
• Integrated CMOS linear image sensor with light-receiving slit
• Designed for embedding in portable/mobile measurement equipment
• Wavelength conversion factor provided on test result sheet

Description
The MS series integrates a CMOS linear image sensor, a light-receiving slit and a nanoimprinted grating formed on a convex lens to create a highly compact spectrometer head. Its reduced volume and 9 g mass enable installation in handheld instruments, drones or other mobile platforms where space and weight are limited. The module is non-cooled and intended for typical laboratory and field measurement environments (typical ambient condition Ta = 25 °C unless otherwise noted).

Specifications

• Model: C10988MA-01
• Spectral response range: 340 to 750 nm
• Spectral resolution (FWHM) (typ.): 12 nm
• Spectral resolution (FWHM) (max.): 14 nm
• Cooling: Non-cooled
• Built-in sensor: CMOS linear image sensor
• Total pixels: 256 pixels
• Physical size: 27.6 × 16.8 × 13 mm (thumb size)
• Weight: 9 g
• Measurement condition: Typ. Ta = 25 °C, unless otherwise noted
• Note: Wavelength conversion factor is listed on the test result sheet
