UV-visible mini spectrometer C16449MA-02

CMOScompactCCD

Product overview

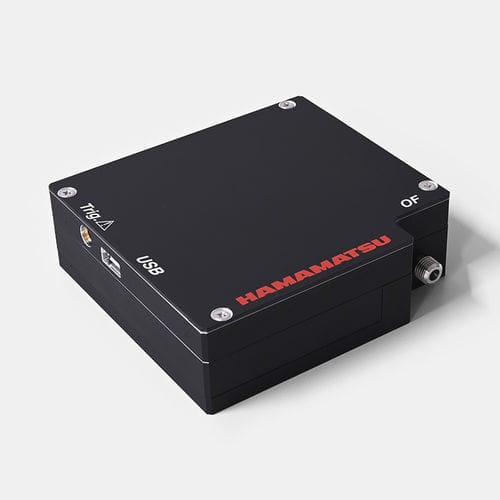

The mini-spectrometer C16449MA-02 (WS series) is a compact thin polychromator integrating optical elements, a high-sensitivity CMOS linear image sensor and driver electronics in a single enclosure. Measurement light is introduced via an optical fiber and spectral data are transferred to a PC via USB. The instrument includes evaluation software for configuring measurement conditions, acquiring and saving data and plotting spectra. DLL specifications are provided for custom software development. A trigger function enables short integration times for pulsed-emission spectroscopy.

Key capabilities

• Compact thin housing with integrated optics, image sensor and driver circuit
• Optical-fiber input and USB 2.0 connection for spectrum acquisition
• Built-in high-sensitivity CMOS linear image sensor (sensitivity comparable to CCD)
• Trigger function for short-term integration and pulsed emission measurement
• USB bus powered (no external power supply required)
• Options available to modify spectral response range and spectral resolution
• Includes evaluation software; DLL provided for custom application integration

Features

• High spectral resolution (typ. 0.45 nm FWHM)
• Customizable spectral range and resolution (optional)
• 16-bit A/D conversion and 2048-pixel linear sensor
• Non-cooled design suitable for compact system integration
• Trigger input for synchronization with pulsed light sources

Technical specifications

• Spectral response range: 200 to 600 nm
• Spectral resolution (FWHM) typical: 0.45 nm; max: 0.7 nm
• Cooling: non-cooled
• A/D resolution: 16 bits
• Interface: USB 2.0
• Built-in sensor: high-sensitivity CMOS linear image sensor
• Total pixels: 2048
• Measurement condition: Typical Ta = 25 °C unless otherwise noted
