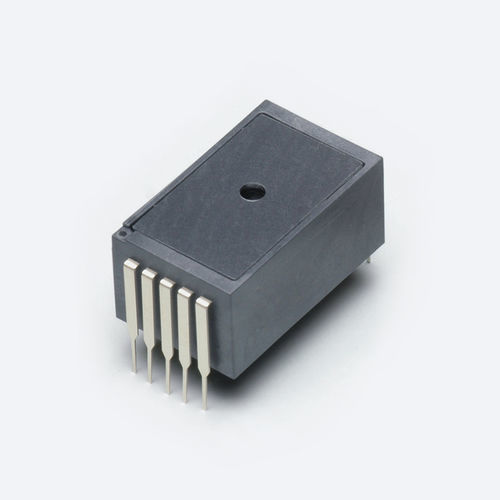

CMOS mini spectrometer C11708MA

ultracompactgrating

Overview
The MS series are thumb-sized (27.6 × 16.8 × 13 mm) spectrometer heads developed for installation into mobile measurement equipment by merging MEMS and image sensor technologies. The MS series integrates a CMOS linear image sensor with a built-in light receiving slit and a nanoimprint grating on a convex lens, producing a spectrometer with less than one-third the volume of the RC series.

Features

• Compact thumb size: 27.6 × 16.8 × 13 mm
• Lightweight: 9 g
• Spectral response range: 640–1050 nm
• Spectral resolution (FWHM): typically 15 nm; maximum 20 nm
• Designed for integration into mobile or embedded measurement systems
• Wavelength conversion factor provided on test result sheet

Specifications
Spectral response range: 640 to 1050 nm
Spectral resolution (FWHM) (typ.): 15 nm
Spectral resolution (FWHM) (max.): 20 nm
Cooling: Non-cooled
Built-in sensor: CMOS linear image sensor
Number of total pixels: 256 pixels
Measurement condition: Typ. Ta=25 ℃, unless otherwise noted

Technical specifications

• Model: C11708MA
• Series: MS series mini-spectrometer
• Dimensions: 27.6 × 16.8 × 13 mm
• Weight: 9 g
• Spectral resolution (FWHM): typical 15 nm; maximum 20 nm
• Cooling: Non-cooled
• Sensor: CMOS linear image sensor (256 total pixels)
• Measurement condition: Typical at Ta = 25 ℃
