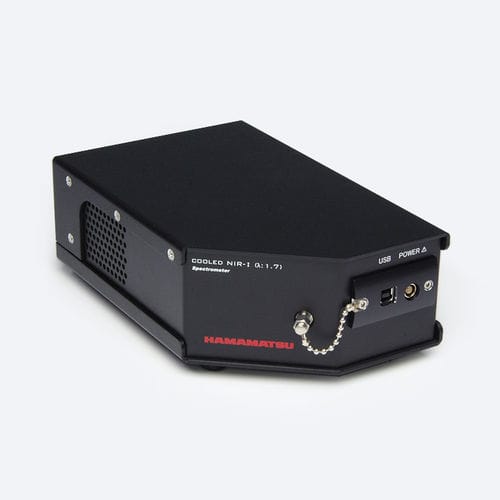

NIR mini spectrometer C9913GC

gratingUSB

Product overview
The Hamamatsu TG series C9913GC is a compact polychromator integrating optical components and an InGaAs linear image sensor. Light is delivered to the TG series entrance via an optical fiber; the measured spectrum is output through the USB port to a PC for acquisition. The TE-cooled version reduces sensor noise for improved measurement accuracy. Supplied sample software, device driver and DLL enable easy configuration of measurement conditions, data capture, storage and graphical display.

Features

• High throughput using a quartz transmission grating
• Accurate, stable optical characteristics
• Low-noise measurements with thermoelectric (TE) cooling
• Compact design for straightforward OEM integration
• Wavelength conversion factor stored in internal memory
• Includes sample software, device driver and DLL for data acquisition

Specifications (table)

• Spectral response range: 900 to 1700 nm
• Spectral resolution (FWHM) typical: 5 nm
• Spectral resolution (FWHM) maximum: 7 nm
• Cooling: TE-cooled
• A/D resolution: 16 bits
• Interface: USB 1.1
• Built-in sensor: InGaAs linear image sensor (TE-cooled type)
• Total pixels: 512 pixels
• Measurement condition: Typ. Ta = 25 ℃, unless otherwise noted

Technical specifications

• Spectral response: 900–1700 nm
• Resolution (FWHM): typ. 5 nm, max. 7 nm
• Detector: TE-cooled InGaAs linear image sensor, 512 pixels
• A/D converter: 16-bit
• Interface: USB 1.1 for data output to PC
• Design: integrated polychromator for fiber-coupled input and compact OEM assembly
