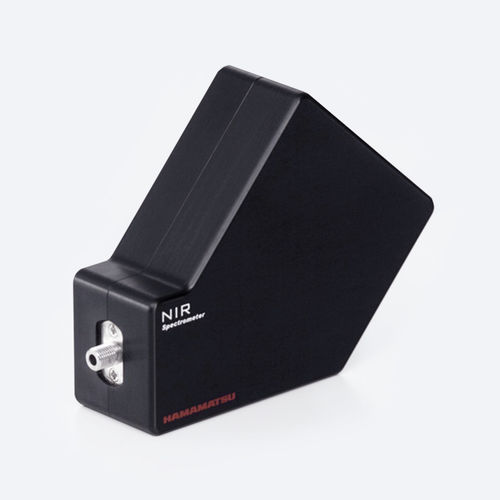

NIR mini spectrometer C11482GA

measurementcompactgrating

Product overview
Hamamatsu TG series mini-spectrometer C11482GA is a compact polychromator integrating optical elements and an InGaAs linear image sensor. Light is delivered via an optical fiber to the entrance port; the built-in sensor measures the spectrum and transmits data to a PC via USB for acquisition. The unit is palmtop-size and operates from USB bus power with no external supply required.

Key features

• High throughput from a quartz transmission grating
• Accurate and stable optical characteristics
• USB bus powered (no external power supply needed)
• Compact, palmtop-size design for easy integration
• Wavelength conversion factor stored in internal memory

Applications / Spectral range
Near-infrared measurements, 900-1700 nm

Technical specifications

• Spectral response range: 900 to 1700 nm
• Spectral resolution (FWHM) typical: 5 nm; maximum: 7 nm
• Cooling: non-cooled
• A/D resolution: 16 bits
• Interface: USB 2.0
• Built-in sensor: InGaAs linear image sensor
• Number of total pixels: 512 pixels
• Power: USB bus powered (no external supply required)
• Includes sample software for measurement, data acquisition and graph display
• DLL function specifications provided to support custom software development
