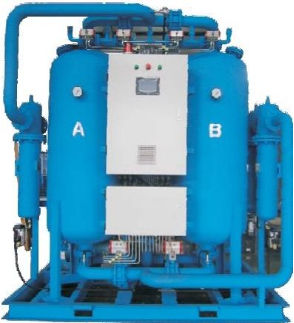

Desiccant compressed air dryer KXB series
adsorptionblower purge

Desiccant compressed air dryer - KXB series - Hangzhou Mairui Gas Engineering Equipment Co., Ltd - adsorption / blower purge

Add to favorites

Compare this product

Go to the Hangzhou Mairui Gas Engineering Equipment Co., Ltd website for more information

Characteristics

Technology

desiccant, adsorption

Other characteristics

blower purge

Capacity

Max.: 30,600 m³/h
(1,080,628.8 ft³/h)

Min.: 1,380 m³/h
(48,734.24 ft³/h)

Working pressure

35 MPa

Weight

Max.: 19,200 kg
(42,328.8 lb)

Min.: 1,380 kg
(3,042.4 lb)

Description

Product overview
The KXB series uses blower-heated ambient air for desiccant regeneration; a limited portion of product air is used for cooling. Units are available in multiple published models covering a wide flow and connection range for industrial compressed-air drying applications.

How it works & product features

A blower draws ambient air as the regeneration medium.
Heated ambient air passes through the desiccant vessel to restore adsorption capacity.
A controlled, limited volume of product air is routed for cooling after regeneration.
Designed for continuous operation in heavy-duty compressed-air systems.

Main technical specifications

Published models: 16 (KXB-200 to KXB-5000).
Rated flow range: 23 to 510 Nm3/min, depending on model.
Connections: DN65 to DN350, depending on model.
Weights: 1,380 kg to 19,200 kg, depending on model.

Models & specifications (table)
Model | Rated Flow (Nm3/min) | Connection | Weight (kg)
KXB-200 | 23 | DN65 | 1380
KXB-250 | 27 | DN80 | 1720
KXB-300 | 34 | DN80 | 2060
KXB-400 | 45 | DN100 | 2750
KXB-500 | 55 | DN100 | 3430
KXB-600 | 65 | DN125 | 4120
KXB-800 | 87 | DN150 | 5500
KXB-1000 | 110 | DN150 | 6300
KXB-1200 | 130 | DN150 | 7810
KXB-1500 | 160 | DN200 | 9200
KXB-2000 | 210 | DN200 | 11300
KXB-2500 | 260 | DN250 | 14000
KXB-3000 | 320 | DN250 | 14900
KXB-3500 | 360 | DN300 | 16200
KXB-4000 | 410 | DN300 | 17900
KXB-5000 | 510 | DN350 | 19200

Applications
For deep compressed-air drying, membrane feed pretreatment, instrument air and general process-air duties in industrial systems.

Related products
KXD Heatless Dryer; KXR Heated-Purge Dryer; KXP Zero-Purge Blower-Heated Dryer

Technical characteristics

Regeneration method: blower-heated ambient air.
Cooling: limited amount of product air used for cooling.
Published models: 16 (KXB-200 through KXB-5000).
Rated flows: 23–510 Nm3/min depending on model.
Connection range: DN65–DN350 depending on model.
Weight range: 1,380–19,200 kg depending on model.
Primary applications: deep drying, membrane pretreatment, instrument and process air.
