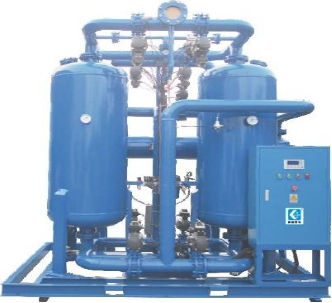

Desiccant compressed air dryer KXC series

heat-of-compressionby adsorption with heatwater-cooled

Product Overview
The KXC Series is a heat-of-compression regenerative desiccant air dryer that recovers compressor discharge heat to regenerate the desiccant, followed by cooling and moisture separation to provide deep-dried compressed air. It is intended for use where compressor discharge temperature is high and cooling water is available.

How It Works & Product Features

• Uses compressor discharge heat for desiccant regeneration, reducing external heating demand.
• Cooling and separation stages remove condensate and residual moisture after regeneration to protect downstream equipment.

Main Technical Specifications

• Published models: 16
• Rated flow range: 23 to 510 Nm³/min
• Cooling water consumption range: 8.6 to 250 t/h
• Connection sizes (typical): DN65 to DN350
• Length range: 2070 to 9100 mm
• Width range: 1030 to 3620 mm
• Height range: 2310 to 3860 mm
• Weight range: 1480 to 19200 kg
• Regeneration method: utilizes compressor discharge heat for desiccant regeneration followed by cooling and moisture separation

Models & Specifications

• KXC-200: Rated flow 23 Nm³/min; Cooling water 8.6 t/h; Connection DN65; L 2070 mm; W 1030 mm; H 2310 mm; Weight 1480 kg
• KXC-250: Rated flow 27 Nm³/min; Cooling water 10.8 t/h; Connection DN80; L 2410 mm; W 1200 mm; H 2430 mm; Weight 1720 kg
• KXC-300: Rated flow 34 Nm³/min; Cooling water 12.8 t/h; Connection DN80; L 2740 mm; W 1350 mm; H 2650 mm; Weight 1980 kg
• KXC-400: Rated flow 45 Nm³/min; Cooling water 17.2 t/h; Connection DN100; L 2900 mm; W 1510 mm; H 2780 mm; Weight 2500 kg
• KXC-500: Rated flow 55 Nm³/min; Cooling water 21.4 t/h; Connection DN100; L 3050 mm; W 1690 mm; H 2830 mm; Weight 3130 kg
• KXC-600: Rated flow 65 Nm³/min; Cooling water 26.5 t/h; Connection DN125; L 3190 mm; W 1810 mm; H 2880 mm; Weight 3920 kg
• KXC-800: Rated flow 87 Nm³/min; Cooling water 34.5 t/h; Connection DN150; L 3300 mm; W 1920 mm; H 2910 mm; Weight 4650 kg
• KXC-1000: Rated flow 110 Nm³/min; Cooling water 43.1 t/h; Connection DN150; L 3520 mm; W 2100 mm; H 2990 mm; Weight 5690 kg
• KXC-1200: Rated flow 130 Nm³/min; Cooling water 52.3 t/h; Connection DN150; L 3700 mm; W 2330 mm; H 3170 mm; Weight 6530 kg
• KXC-1500: Rated flow 160 Nm³/min; Cooling water 65 t/h; Connection DN200; L 3900 mm; W 2450 mm; H 3200 mm; Weight 7500 kg
• KXC-2000: Rated flow 210 Nm³/min; Cooling water 90 t/h; Connection DN200; L 4680 mm; W 2750 mm; H 3510 mm; Weight 9230 kg
• KXC-2500: Rated flow 260 Nm³/min; Cooling water 108 t/h; Connection DN250; L 5400 mm; W 3000 mm; H 3720 mm; Weight 12400 kg
• KXC-3000: Rated flow 320 Nm³/min; Cooling water 132 t/h; Connection DN250; L 6900 mm; W 3300 mm; H 3940 mm; Weight 14300 kg
• KXC-3500: Rated flow 360 Nm³/min; Cooling water 161 t/h; Connection DN300; L 7540 mm; W 3470 mm; H 3920 mm; Weight 15900 kg
• KXC-4000: Rated flow 410 Nm³/min; Cooling water 200 t/h; Connection DN300; L 8210 mm; W 3580 mm; H 3850 mm; Weight 17200 kg
• KXC-5000: Rated flow 510 Nm³/min; Cooling water 250 t/h; Connection DN350; L 9100 mm; W 3620 mm; H 3860 mm; Weight 19200 kg

Applications

• Deep compressed-air drying systems downstream of high-temperature compressor discharge.
• Industrial processes requiring low dew point compressed air where cooling water is available (e.g. process plants, heavy industry, pneumatics for painting and instrumentation).

Related Products

• KXD Heatless Dryer
• KXR Heated-Purge Dryer
• KXB Blower-Purge Dryer

Key Technical Data

• Series: KXC Series (heat-of-compression regenerative desiccant air dryer)
• Published models: 16
• Rated flow range: 23 to 510 Nm³/min
• Cooling water consumption range: 8.6 to 250 t/h
• Connection sizes (typical): DN65 to DN350
• Length range: 2070 to 9100 mm
• Width range: 1030 to 3620 mm
• Height range: 2310 to 3860 mm
• Weight range: 1480 to 19200 kg
• Regeneration method: uses compressor discharge heat for desiccant regeneration followed by cooling and moisture separation
