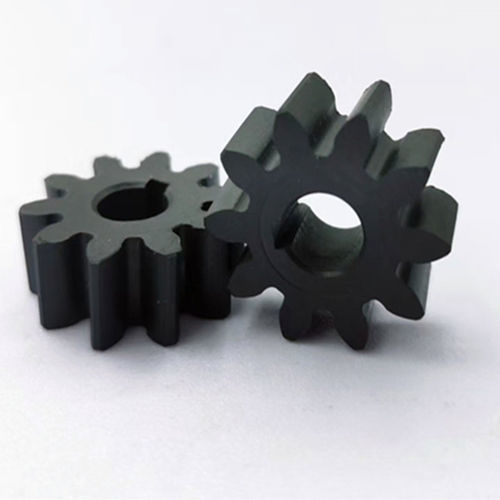

Spur gear

helical-toothedplasticsteel

DRIVE GEAR Introduction Material tooth shape parameters Material PTFE + carbon fiber cudgel Combining the special qualities of PTFE (Polytetrafluoroethylene) with carbon fiber gives a composite material with strength and rigidity. Particularly in sectors that demand high-performance, robust, and low-friction components, this mix produces a material with improved performance characteristics that fits for a broad spectrum of applications. - Module: 2 - Pressure angle: 20 - Helix angle: 3 - Direction of rotation: right - Center distance: 20.8 - Displacement: 0.218 - Span pitch: 9.36-9.38 - Number of span teeth: 2 - Material: PTFE + carbon fiber - Accuracy: ±0.02 Customers collaborate to create gears that fit particular design criteria including size, shape, tooth count, gear ratio, and load capacity. Professional engineering services will aid to maximize gear designs and guarantee they run effectively in consumer applications. For gear manufacture, a great variety of materials are at hand: steel, stainless steel, aluminum, brass, plastics, and composites. Strength, wear resistance, and the surroundings the gear runs in all influence the material choice. Consumers have choices depending on their needs. Gears' hardness and durability can be raised by means of heat treatment techniques like carburizing, nitriding, and quenching. Advanced Machining Technology. Modern custom gear manufacturers employ advanced machining technologies such as CNC (computer numerical control) milling, grinding, hobbing, and broaching to ensure the precision of gear manufacturing. Make sure gears satisfy stringent tolerances, usually to the micron level, and pass thorough quality control tests to guarantee they run as expected in their intended uses. Common gears for basic mechanical power transfer are spur gears. Applications calling for quieter, more consistent operation need for helical gears. Usually at a 90-degree angle, bevel gears move motion between intersecting shafts. Applied for significant speed reduction, Worm Gears offer great torque output in a small form factor. Applications requiring a small, effective design with a high torque-to-weight ratio find use for planetary gears. Both low and high volume production can be handled. This adaptability lets consumers order big volumes for mass production or little amounts for specific purposes. Gears meant for use in large machinery or automated systems where dependability and durability are paramount are industrial machinery. Robotics: Automated systems where accuracy and compactness are paramount and custom gears for robotic arms. Automobile: Custom gearboxes, transfer gears, high-performance gears including differentials and differential gearboxes. Aerospace: Gears intended for use in aircraft and spacecraft and those satisfying strict regulatory criteria. Gears for wind turbines and other renewable energy systems needing effective energy transmission and long-lasting performance are found here.
