Dead length collet B42

Description

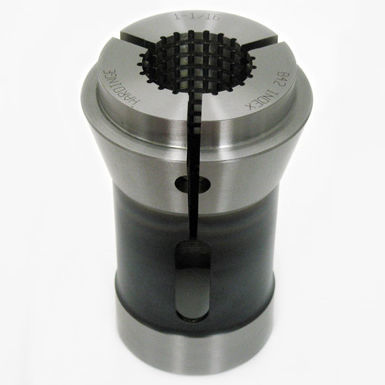

B42 (TF48) Index Round Collet 1-5/8" Round Serrated
Same as TF48. Hardinge Swiss-type collets are ground to precise size and TIR to meet precision machining requirements with a standard accuracy recognized in the industry. The B42 Index Round Collet supports Hardinge workholding product lines and is compatible with Style B Stationary Dead Length Collet Adaptation Chucks.

Manufacturing and quality
Precision manufacturing with dedicated teams and manufacturing cells. Every collet and guide bushing is inspected on a Hardinge SUPERPRECISION® (0.000015" TIR) headstock before reaching inventory. Advanced machine tools and skilled machinists provide productivity and accuracy. Wire and Ram (EDM) Electrical Discharge Machines produce custom collet shapes, stepped-holes and extended-nose pickoff collets. Hardinge staffs custom workholding engineers and support staff for fast and accurate turnaround to meet custom Swiss turning requirements.

Applications / Product family

• Headstock Collets
• Pickoff Collets
• Carbide Guide Bushing
• Bar Loader Collets
• Custom Manufacturing

Specifications / Technical data

• Overall Length: 3.688" (93.68 mm)
• Back Bearing Diameter: 1.889" (48 mm)
• Head Angle: 14° 50'
• Collet Range: 0.008" to 1.657" (0.20 mm to 42.09 mm)
• Machine Type: Star; Index
• Type: Swiss automatic
• Order Hole Shape: Round
• Style: TF48 / B42 Index
• Material: Steel
