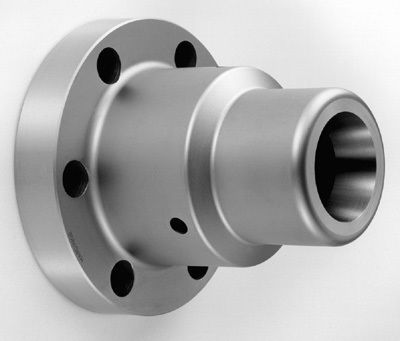

Collet chuck for turning applications A2-6 16C-60

for metalworkingpull-back3-jaw

Description
Hardinge offers a broad line of Collet Adaptation Chucks for lathes. These chucks convert an existing spindle into a collet spindle, enabling the advantages of using Hardinge collets. Chucks are competitively priced and available for quick delivery.

Notes
More information is needed for Hardinge to fulfill this product; additional machine link-up details are required to complete orders.

Why would I want to use collets on my jaw-chuck lathe?
To Increase Productivity over 3-Jaw Chucks

• Faster job changeover using collets—examples include 5C, 16C, 3J, 22J, 35J, S15, S20, S26, S30, #11 B&S, #21 B&S, #22 B&S, B42, B60, B65, DIN 90 and more
• Higher spindle speeds for reduced cycle times

To Increase Capability over 3-Jaw Chucks

• More work envelope to machine longer workpieces
• Achieve higher precision
• Interchangeable Style "S" master pads accommodate a wide range of workpiece sizes and configurations

Increase Control over 3-Jaw Chucks

• Exact part length control
• Improved concentricity for optimum part roundness

Additional information
Centrifugal force is not an issue with Collet Adaptation Chucks; machines can operate at the maximum RPM allowed by tooling. Link-ups can be designed to fit specific machines and be used across a line of workholding elements including internal Sure-Grip® Collet applications. Custom manufacturing options are available.

Caractéristiques / spécifications techniques

• Spindle Size: A2-6
• Spindle Type: American Standard
• Type: HCAC
• Collet Series: C
• Actuation Style: Style A, Pull-back with Removable Workstop
• Brand: Hardinge
• Style: 16C
• Chuck Type: Stepped Nose
• Item weight: 8.2 lbs
• Stock status: In Stock (made to order and may not be returnable or cancellable)
