Expanding sleeve chuck arbor 600

colletquick-changedead length

Description

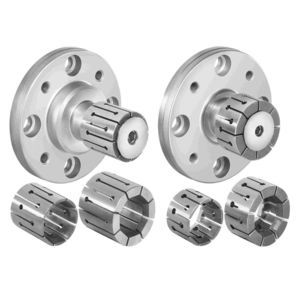

The Hardinge Sure-Grip® Expanding Collet System is designed for internal gripping of larger-diameter bores. The Sure-Grip system delivers a wider gripping range and increased gripping force through true parallel closing. The #600 Series expanding collet covers bores from 3" (76.2 mm) to 4.015" (101.98 mm). Collets are available in 1/64" increments within the stated range. Each collet accommodates workpiece bore tolerances from -0.001" (0.0254 mm) to +0.015" (0.38 mm).

Advantages

• Instant centering of the arbor — no adjustment required after mounting
• Quick changeover
• Wide gripping range for each collet
• True parallel gripping even when engaging only half the collet body
• High gripping force for secure holding
• Light gripping possible on small parts with bores down to 1/8" (3.175 mm)
• Built-in safety stop to prevent overexpansion
• Accurate control of part length
• Consistent collet capacity across different spindle styles (interchangeable collets)

Technical specifications

• Size range: 3" (76.2 mm) to 4.015" (101.98 mm)
• Style: #600
• Series: #600 Series
• Collet increment availability: 1/64" increments within the stated range
• Workpiece bore tolerance per collet: -0.001" (0.0254 mm) to +0.015" (0.38 mm)
• Minimum bore for light gripping: 1/8" (3.175 mm)
• Expanding collet not included with arbor assembly
