Collet 500

Product description

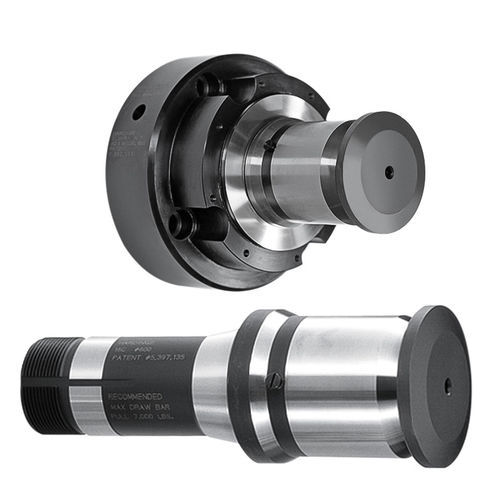

The Hardinge Sure-Grip® Expanding Collet System is designed for internal gripping of larger-diameter bores. The system delivers a wide gripping range and increased gripping force through true parallel closing. The #500 series expanding collets accommodate sizes from 2-1/4" to 2.999" (57.15 to 76.17 mm); collets are available in 1/64" increments. Each collet will hold a workpiece bore from -0.001" (0.0254 mm) under to +0.015" (0.38 mm) over the nominal collet size.

Advantages

• Instant centering of the arbor—no adjustment needed after mounting
• Quick changeover to reduce downtime
• Wide gripping range per collet to minimize tooling variants
• True parallel gripping even when engaging only half the collet body
• High gripping force for secure internal holding
• Light gripping capability for small parts with bores down to 1/8" (3.175 mm)
• Built-in safety stop to prevent overexpansion
• Accurate part length control for repeatable setups
• Interchangeable collets for consistent capacity across spindle styles

Table
Size range: 2-1/4" (57.1 mm) to 3.015" (76.58 mm)
Style: #500

Safety warning
WARNING: product can expose you to chemicals, such as lead, including one or more listed chemicals which are known to the State of California to cause cancer or birth defects or other reproductive harm.

Technical specifications

• Size range: 2-1/4" (57.1 mm) to 3.015" (76.58 mm)
• Style / series: #500
• #500 series internal collet handling range: 2-1/4" to 2.999" (57.15 to 76.17 mm)
• Collet increment availability: 1/64"
• Collet holding tolerance: -0.001" (0.0254 mm) to +0.015" (0.38 mm)
• Minimum bore for light gripping: 1/8" (3.175 mm)
• True parallel closing for increased gripping force
• Built-in safety stop to prevent overexpansion
• Interchangeable collets for consistency across spindle styles
