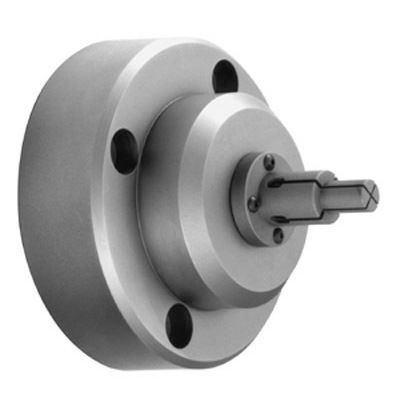

Expanding sleeve chuck arbor 18450000000100

quick-changedirect mountingself-centering

Product description
Spindle-mount expanding collet system compatible with A2-5, A2-6 and A2-8 spindles. The assembly mounts directly onto the machine spindle and requires no centering adjustment. Typical changeover time between arbor sizes is approximately 5 to 7 minutes, enabling efficient tooling swaps for production and repair operations.

This assembly includes:

• Collet Key Screw: 78710000000000
• Locating Pin: 78690000100200
• Draw Plug: 18530000000100
• Expanding Sleeve: 18490000000100
• Screw 7/16-14 x 1-3/4: 0101228
• Socket Head Cap Screw: MS 0104023
• #100 A2-5 Arbor: 18470000000100
• #100 Limit Ring: 18510000000100
• Short Arm Allen Wrench: W 0011864

Note
Expanding Collet is not included.

Delivery Details
If out of stock, standard lead time is within 10 working days.

Technical specifications

• Size Range: 1/8\" (3.17 mm) to 1/2\" (12.70 mm)
• Style: #100
• Spindle-Mount Styles: A2-5, A2-6 and A2-8
• Mounting: Mounts directly onto machine spindle; no centering adjustment required
• Changeover time: Approximately 5 to 7 minutes
• Included components: Collet Key Screw (78710000000000), Locating Pin (78690000100200), Draw Plug (18530000000100), Expanding Sleeve (18490000000100), Screw 7/16-14 x 1-3/4 (0101228), Socket Head Cap Screw (MS 0104023), #100 A2-5 Arbor (18470000000100), #100 Limit Ring (18510000000100), Short Arm Allen Wrench (W 0011864)
• Product code: 18450000000100
