Stainless steel ball transfer unit PV-H

polymersteelplastic

Overview

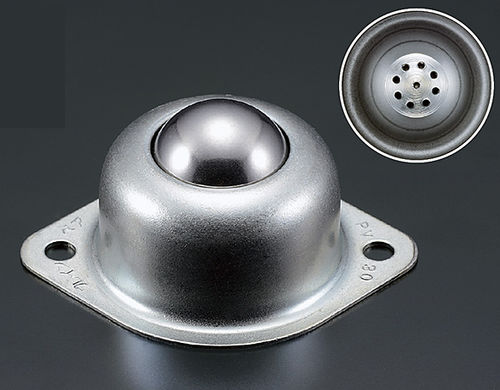

Conventional ball transfer is structurally prone to retain dust inside, causing rotation failure in harsh environments such as underwater (sea water, muddy water), oil, and dust. Planeveyor dust discharge type uses the original spherical surface (PAT.P) to provide holes/slits in the receiving part of the small balls and the ball cover to discharge dust and water that get inside, enabling continued smooth rotation even under severe conditions.

Key features

• Original spherical surface (PAT.P) enables drilling of multiple dust-discharge holes.
• Discharges dust and water entering the mechanism to prevent rotation failure.
• Fundamental approach different from seals or other countermeasures; relies on internal discharge rather than exclusion.

Comparison
Conventional (Atec's old type): Tends to allow dust intrusion and is disadvantaged in harsh environments (underwater, oil, dust).
The original spherical surface (PAT.P): Discharges dust that enters and demonstrates reliable performance in harsh operating environments.

Examples of harsh usage situations corresponding to dust discharge type

• Transportation of an iron plate with mill scale
• Transportation of a mold (sand mold)
• Stone processing site (sandblasting)
• Powder molding machine (mold movement)
• Work pieces conveyance in washing machine
• Work pieces conveyance in cutting process
• Ceramic powder molding machine (molding of glass fiber)

Series / Models (summary)
PV-H series includes multiple models and variants covering press-molded and cutting types with dust discharge holes: PV50H, PV50HS, PV50UH, PV50UHS, PV120H, PV120UFH, PV20BH, PV20BSH, PV50BH, PV50BSH, PV120BH, PV120BSH, PVS20B, PVS20BS, PVS50B, PVS50BS, PVS120B, PVS120BS, PV50FH, PV50FHS, PV120FH, PV120FHS, PV160FH, PV160FHS, PV260FH, PV260FHS, PV400FH, PV400FHS, PV900FH, PV900FHS, PVS50F, PVS50FS, PVS120F, PVS120FS, PVS160FM, PVS160FMS, PVS260FM, PVS260FMS, PVS400FM, PVS400FMS, PVS900FM, PVS900FMS.

Technical tables
PV50H / PV50HS / PV50UH / PV50UHS
Model / Recommended Load Capacity / Weight / Use Direction / Main Ball / Small Balls / Body / Cover / 3D
PV50H / 490N (50kgf) / 142g / Upward / STEEL / STEEL / SUS304 / SS / (3D available)
PV50HS / 490N (50kgf) / 134g / Upward / SUS440C / SUS440C / SUS304 / SUS304 / (3D available)
PV50UH / 490N (50kgf) / 136g / Upward / STEEL / STEEL / SUS304 / SS / (3D available)
PV50UHS / 490N (50kgf) / 132g / Upward / SUS440C / SUS440C / SUS304 / SUS304 / (3D available)

PV120H / PV120UFH
Model / Static Rated Load / Load Rating / Weight / Use Direction / Main Ball / Small Balls / Body / Cover / CAD
PV120H / 1,960N (200kgf) / 1,176N (120kgf) / 230g / Upward / STEEL / STEEL / SCM415 / SS·SUM / (CAD available)
PV120UFH / 1,960N (200kgf) / 1,176N (120kgf) / 320g / Upward / SUJ2 / SUJ2 / SCM415 / SUM / (CAD available)

PV20BH / PV20BSH
Model / Static Rated Load / Load Rating / Weight / Use Direction / Main Ball / Small Balls / Body / Cover / CAD
PV20BH / 784N (80kgf) / 196N (20kgf) / 48g / Upward / SUJ2 / SUJ2 / SCM415 / SUM / (CAD available)
PV20BSH / 784N (80kgf) / 196N (20kgf) / 47g / Upward / SUS440C / SUS440C / SUS440C / SUS303 / (CAD available)

PV50BH / PV50BSH
Model / Static Rated Load / Load Rating / Weight / Use Direction / Main Ball / Small Balls / Body / Cover
PV50BH / 1,078N (110kgf) / 490N (50kgf) / 94g / Upward / SUJ2 / SUJ2 / SCM415 / SUM
PV50BSH / 1,078N (110kgf) / 490N (50kgf) / 92g / Upward / SUS440C / SUS440C / SUS440C / SUS303

PV120BH / PV120BSH
Model / Static Rated Load / Load Rating / Weight / Use Direction / Main Ball / Small Balls / Body / Cover
PV120BH / 1,960N (200kgf) / 1,176N (120kgf) / 340g / Upward / SUJ2 / SUJ2 / SCM415 / SUM
PV120BSH / 1,960N (200kgf) / 1,176N (120kgf) / 336g / Upward / SUS440C / SUS440C / SUS440C / SUS303

PVS Series (Bolt type, Downward)
Model / Static Rated Load / Load Rating / Weight / Use Direction / Main Ball / Small Balls / Body / Cover
PVS20B / 343N (35kgf) / 196N (20kgf) / 50g / Downward / SUJ2 / SUJ2 / SCM415 / SUM
PVS20BS / 343N (35kgf) / 196N (20kgf) / 49g / Downward / SUS440C / SUS440C / SUS440C / SUS303
PVS50B / 588N (60kgf) / 490N (50kgf) / 98g / Downward / SUJ2 / SUJ2 / SCM415 / SUM
PVS50BS / 588N (60kgf) / 490N (50kgf) / 96g / Downward / SUS440C / SUS440C / SUS440C / SUS303
PVS120B / 1,470N (150kgf) / 1,176N (120kgf) / 282g / Downward / SUJ2 / SUJ2 / SCM415 / SUM
PVS120BS / 1,470N (150kgf) / 1,176N (120kgf) / 280g / Downward / SUS440C / SUS440C / SUS440C / SUS303

PV-FH series (Cutting flange type, Upward)
Model / Static Rated Load / Load Rating / Weight / Use Direction / Main Ball / Small Balls / Body / Cover
PV50FH / 1,078N (110kgf) / 490N (50kgf) / 109g / Upward / SUJ2 / SUJ2 / SCM415 / Al
PV50FHS / 1,078N (110kgf) / 490N (50kgf) / 108g / Upward / SUS440C / SUS440C / SUS440C / Al
PV120FH / 1,960N (200kgf) / 1,176N (120kgf) / 256g / Upward / SUJ2 / SUJ2 / SCM415 / Al
PV120FHS / 1,960N (200kgf) / 1,176N (120kgf) / 248g / Upward / SUS440C / SUS440C / SUS440C / Al
PV160FH / 2,940N (300kgf) / 1,568N (160kgf) / 494g / Upward / SUJ2 / SUJ2 / SCM415 / Al
PV160FHS / 2,940N (300kgf) / 1,568N (160kgf) / 506g / Upward / SUS440C / SUS440C / SUS440C / Al
PV260FH / 3,920N (400kgf) / 2,548N (260kgf) / 847g / Upward / SUJ2 / SUJ2 / SCM415 / Al
PV260FHS / 3,920N (400kgf) / 2,548N (260kgf) / 870g / Upward / SUS440C / SUS440C / SUS440C / Al
PV400FH / 7,840N (800kgf) / 3,920N (400kgf) / 2,050g / Upward / SUJ3 / SUJ2 / SCM415 / Al
PV400FHS / 7,840N (800kgf) / 3,920N (400kgf) / 2,083g / Upward / SUS440C / SUS440C / SUS440C / Al
PV900FH / 17,640N (1,800kgf) / 8,820N (900kgf) / 5,400g / Upward / SUJ3 / SUJ2 / SCM415 / Al
PV900FHS / 17,640N (1,800kgf) / 8,820N (900kgf) / 5,560g / Upward / SUS440C / SUS440C / SUS440C / Al

PVS-F series (Cutting flange type, Downward)
Model / Static Rated Load / Load Rating / Weight / Use Direction / Main Ball / Small Balls / Body / Cover
PVS50F / 588N (60kgf) / 490N (50kgf) / 111g / Downward / SUJ2 / SUJ2 / SCM415 / Al
PVS50FS / 588N (60kgf) / 490N (50kgf) / 110g / Downward / SUS440C / SUS440C / SUS440C / Al
PVS120F / 1,470N (150kgf) / 1,176N (120kgf) / 260g / Downward / SUJ2 / SUJ2 / SCM415 / Al
PVS120FS / 1,470N (150kgf) / 1,176N (120kgf) / 252g / Downward / SUS440C / SUS440C / SUS440C / Al
PVS160FM / 2,940N (300kgf) / 1,568N (160kgf) / 485g / Downward / SUJ2 / SUJ2 / SCM415 / Al
PVS160FMS / 2,940N (300kgf) / 1,568N (160kgf) / 556g / Downward / SUS440C / SUS440C / SUS440C / Al
PVS260FM / 4,900N (500kgf) / 2,548N (260kgf) / 872g / Downward / SUJ2 / SUJ2 / SCM415 / Al
PVS260FMS / 4,900N (500kgf) / 2,548N (260kgf) / 1,002g / Downward / SUS440C / SUS440C / SUS440C / Al
PVS400FM / 8,820N (900kgf) / 3,920N (400kgf) / 1,599g / Downward / SUJ3 / SUJ2 / SCM415 / Al
PVS400FMS / 8,820N (900kgf) / 3,920N (400kgf) / 1,620g / Downward / SUS440C / SUS440C / SUS440C / Al
PVS900FM / 18,620N (1,900kgf) / 8,820N (900kgf) / 5,410g / Downward / SUJ3 / SUJ2 / SCM415 / Al
PVS900FMS / 18,620N (1,900kgf) / 8,820N (900kgf) / 5,660g / Downward / SUS440C / SUS440C / SUS440C / Al

Caractéristiques / spécifications techniques

• Patent / Mechanism: Original spherical surface (PAT.P)
• Materials: STEEL, STAINLESS (SUS variants), RESIN (where applicable)
• Compliance: RoHS indicated for series
• Use direction: Upward types (PV-H, PV-BH, PV-FH variants) and Downward types (PVS-B, PVS-F variants)
• Load ranges: from approximately 343N (35kgf) to 18,620N (1,900kgf) depending on model
• Weight range: from ~47g to several kilograms depending on model
• Applications: handling in dusty, wet, oily, underwater or abrasive environments; mold and powder molding transfer; washing and cutting processes; stone processing
