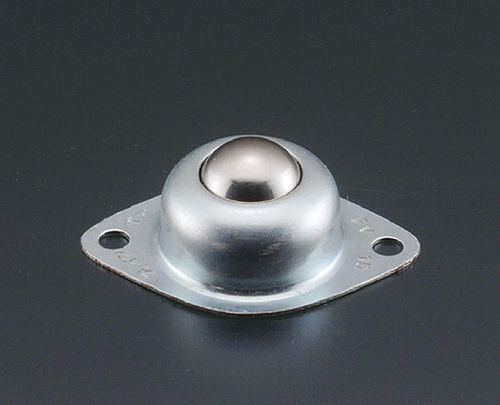

Stainless steel ball transfer unit PV series

polymersteelPOM

Overview
The Planeveyor PV series are press-molded transfer units designed as an economical, versatile option within the Planeveyor lineup. The series covers a wide range of load ratings from small light-load types to larger static-rated models.
For some resin-molded variants, an original spherical surface (PAT.P) is adopted and a dust discharge device is available for selected models.

Materials & Certifications

• Main materials: STEEL, SUS304, SUS440C, SCM415, POM (resin)
• RoHS compliant
• Original spherical surface (PAT.P) adopted for some resin-molding types

Models and specifications
Table header: Model | Recommended Load Capacity | Weight | Use Direction | Main Ball | Small Balls | Body | Cover

PV15 group
PV15 | 147N (15kgf) | 52g | Upward | STEEL | STEEL | SUS304 | SS
PV15S | 147N (15kgf) | 49g | Upward | SUS440C | SUS440C | SUS304 | SUS304

PV30 group
PV30 | 294N (30kgf) | 147g | Upward | STEEL | STEEL | SUS304 | SS
PV30S | 294N (30kgf) | 138g | Upward | SUS440C | SUS440C | SUS304 | SUS304
PV30J | 78.4N (8kgf) | 92g | Upward | POM | SUS440C | SUS304 | SS

PV50H group
PV50H | 490N (50kgf) | 142g | Upward | STEEL | STEEL | SUS304 | SS
PV50HS | 490N (50kgf) | 134g | Upward | SUS440C | SUS440C | SUS304 | SUS304

PV80 group
PV80 | Static rated load 1,960N (200kgf) | Load rating 784N (80kgf) | 219g | Upward | STEEL | STEEL | SCM415 | SS
PV80S | Static rated load 1,960N (200kgf) | Load rating 784N (80kgf) | 220g | Upward | SUS440C | SUS440C | SUS440C | SUS304

PV120H group
PV120H | Static rated load 1,960N (200kgf) | Load rating 1,176N (120kgf) | 230g | Upward | STEEL | STEEL | SCM415 | SS·SUM
PV120HS | Static rated load 1,960N (200kgf) | Load rating 1,176N (120kgf) | 232g | Upward | SUS440C | SUS440C | SUS440C | SUS304

PVP (Resin molding type)
PVP30J | 78.4N (8kgf) | 38g | Upward·Downward | POM*1 | SUS304*1 | POM | POM
Note: *1 The material of large/small balls can be changed.

PV15U group
PV15U | 98N (10kgf) | 48g | Upward | STEEL | STEEL | SUS304 | SS
PV15US | 98N (10kgf) | 46g | Upward | SUS440C | SUS440C | SUS304 | SUS304
PV15UJ | 49N (5kgf) | 28g | Upward | POM | SUS440C | SUS304 | SS

PV30U group
PV30U | 294N (30kgf) | 134g | Upward | STEEL | STEEL | SUS304 | SS
PV30US | 294N (30kgf) | 130g | Upward | SUS440C | SUS440C | SUS304 | SUS304
PV30UJ | 78.4N (8kgf) | 77g | Upward | POM | SUS440C | SUS304 | SS

PV50UH group
PV50UH | 490N (50kgf) | 136g | Upward | STEEL | STEEL | SUS304 | SS
PV50UHS | 490N (50kgf) | 132g | Upward | SUS440C | SUS440C | SUS304 | SUS304

PV30UX (One-step mounting type)
PV30UX | 294N (30kgf) | 150g | Upward | STEEL | STEEL | SUS304 | SS
One-step mounting: easily installed with just one step operation; no need to bolt the main body, simplifying mounting and removal without tools.

PV30-B group
PV30-B | 294N (30kgf) | 164g | Upward | STEEL | STEEL | SUS304 | SS
PV30-BJ | 78.4N (8kgf) | 106g | Upward | POM | STEEL | SUS304 | SS

Spring cushion type (PV5-C / PV8-C)
Table header: Model | Setting Pressure Weight | Maximum Pressure Weight | Weight | Use Direction | Main Ball | Small Balls | Body | Cover
PV5-C | 49N (5kgf) | 68N (7kgf) | 18g | Upward | STEEL | STEEL | SS | SS
PV8-C | 78N (8kgf) | 107N (11kgf) | 40g | Upward | STEEL | STEEL | SS | SS
Spring cushion type receives work load with built-in spring in the Planeveyor body.

Notes
The PV series includes many model variants (standard steel, stainless SUS variants, resin/POM variants, one-step mounting and spring-cushion types). Model suffixes indicate material or type (for example S = stainless, J = POM/resin, U = unit type, H = heavy/static rated, B = bolt/flange type, C = spring-cushion).

Technical characteristics

• Series name: PV series
• Brand: ATEC CO., LTD.
• Product type: Press-molded Planeveyor series (economical, versatile)
• Materials: STEEL, SUS304, SUS440C, SCM415, POM (resin)
• Patents / features: Original spherical surface (PAT.P) for some resin-molded products; dust discharge device available for some series
• Compliance: RoHS
• Recommended load capacities: examples shown per model (from ~49N (5kgf) up to 1,960N static rated; load ratings up to 1,176N for larger models)
• Typical use direction: Upward (many models); some resin types support Upward and Downward
• Weight range: examples from ~18g up to ~232g depending on model and materials
• Model variants: PV15, PV30, PV50H, PV80, PV120H, PVP30J, PV15U, PV30U, PV50UH, PV30UX, PV30-B, PV5-C, PV8-C, etc.
• CAD and drawing files: 3D-CAD / PDF / DWG / DXF available per model
