Stainless steel ball transfer unit PVU series

steelplasticfor heavy loads

Product overview
Unitized press-molded Planeveyor modules and tables for conveying and changing direction of heavy objects and mold racks. Available with standardized dust-discharge options and reinforced variants for medium and heavy loads. Typical application: upstream/downstream transfer, directional change, table lifter integration.

Series included

• PVU series
• PVUH series
• PVUFH series
• PVT / PVT-50H / PVHLT / PVLT series

PVU series - Specifications
Model / L / P / P1 / K / K1 / Weight / Quantity of Planeveyor to be used / Use Direction
PVU-6 / 600 mm / P100×5=500 mm / 50 mm / P200×2=400 mm / 100 mm / 1.8 kg / PV50UH (6 pieces) / Upward
PVU-9 / 900 mm / P100×8=800 mm / 50 mm / P200×4=800 mm / 50 mm / 2.6 kg / PV50UH (9 pieces) / Upward
PVU-12 / 1200 mm / P100×11=1,100 mm / 50 mm / P200×5=1,000 mm / 100 mm / 3.5 kg / PV50UH (12 pieces) / Upward
PVU-18 / 1800 mm / P100×17=1,700 mm / 50 mm / P200×8=1,600 mm / 100 mm / 5.2 kg / PV50UH (18 pieces) / Upward

PVUH series - Specifications
Model / L / P / P1 / K / K1 / Weight / Quantity of Planeveyor to be used / Use Direction
PVUH-6 / 600 mm / P100×5=500 mm / 50 mm / P200×2=400 mm / 100 mm / 3.3 kg / PV30U + reinforcement parts (6 pieces) / Upward
PVUH-9 / 900 mm / P100×8=800 mm / 50 mm / P200×4=800 mm / 50 mm / 4.9 kg / PV30U + reinforcement parts (9 pieces) / Upward
PVUH-12 / 1200 mm / P100×11=1,100 mm / 50 mm / P200×5=1,000 mm / 100 mm / 6.5 kg / PV30U + reinforcement parts (12 pieces) / Upward
PVUH-18 / 1800 mm / P100×17=1,700 mm / 50 mm / P200×8=1,600 mm / 100 mm / 9.7 kg / PV30U + reinforcement parts (18 pieces) / Upward

PVUFH series - Specifications
Model / L / P / P1 / K / K1 / Weight / Quantity of Planeveyor to be used / Use Direction
PVUFH-6 / 600 mm / P100×5=500 mm / 50 mm / P200×2=400 mm / 100 mm / 3.7 kg / PV120UFH (6 pieces) / Upward
PVUFH-9 / 900 mm / P100×8=800 mm / 50 mm / P200×4=800 mm / 50 mm / 5.6 kg / PV120UFH (9 pieces) / Upward
PVUFH-12 / 1200 mm / P100×11=1,100 mm / 50 mm / P200×5=1,000 mm / 100 mm / 7.4 kg / PV120UFH (12 pieces) / Upward
PVUFH-18 / 1800 mm / P100×17=1,700 mm / 50 mm / P200×8=1,600 mm / 100 mm / 11.1 kg / PV120UFH (18 pieces) / Upward

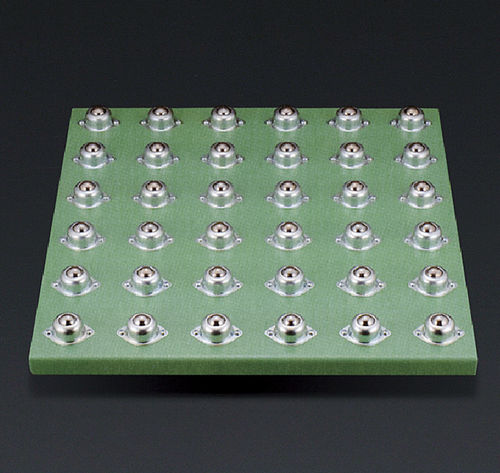

PVT / Table series - Overview & specifications
Used for changing direction of heavy objects and mold racks. Table shape, dimensions and ball pitch can be customized according to application.

PVT series - Specifications
Model / A / B / C / Weight / Quantity of Planeveyor to be used / Use Direction
PVT-6 / 600 mm / P100×5=500 mm / 16-Ø9 / 19.8 kg / PV30 (36 pieces) / Upward
PVT-9 / 900 mm / P100×8=800 mm / 16-Ø9 / 43.0 kg / PV30 (81 pieces) / Upward

PVT-50H series - Specifications
Model / A / B / C / Weight / Quantity of Planeveyor to be used / Use Direction
PVT-6-50H / 600 mm / P100×5=500 mm / 16-Ø9 / 19.8 kg / PV50H (36 pieces) / Upward
PVT-9-50H / 900 mm / P100×8=800 mm / 16-Ø9 / 43.0 kg / PV50H (81 pieces) / Upward

PVHLT / PVLT series - Overview & specifications
PVHLT: handle-driven table lifter with Planeveyor stored inside; handle operation moves table up/down. PVLT: compressed-air actuated table lifter with Planeveyor stored inside; recommended air pressure 0.5 MPa.

PVHLT - Specifications
PVHLT-6 / 600 mm / P100×5=500 mm / 76.0 kg / PV30 (36 pieces) / Upward
PVHLT-9 / 900 mm / P100×8=800 mm / 120.0 kg / PV30 (81 pieces) / Upward

PVLT - Specifications
PVLT-6 / 600 mm / P100×5=500 mm / 54.1 kg / PV30 (36 pieces) / Upward
PVLT-9 / 900 mm / P100×8=800 mm / 81.2 kg / PV30 (81 pieces) / Upward

Technical specifications

• Product type: Unitized press-molded Planeveyor units and tables for conveying and directional change of heavy objects and mold racks.
• Materials: STEEL, STAINLESS (available), RESIN.
• Compliance/marks: RoHS; PAT; PAT.P.
• Dust-discharge units: Standardized options available (examples: PV50UH, PV50H, PV120UFH).
• PV50UH: Recommended use load 490 N (50 kgf). Maximum carrying load: 600 kg.
• PV30U + reinforcement parts: Recommended use load 490 N (50 kgf). Maximum carrying load: 700 kg (when reinforced).
• PV120UFH: Static rated load 1,960 N (200 kgf); load rating 1,176 N (120 kgf). Maximum carrying load: 1,000 kg.
• PV30 / PV30 components: Recommended use load 294 N (30 kgf). Maximum carrying load depends on application: examples 300–500 kg depending on model.
• PVLT: Compressed-air actuated table lifter. Recommended air pressure: 0.5 MPa.
• Typical mounting/size parameters available per model: lengths (L/A) of 600 mm, 900 mm, 1200 mm, 1800 mm with corresponding pitches and mounting hole patterns as listed.
