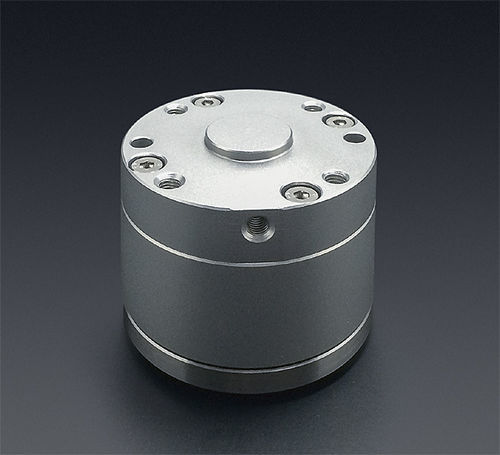

Orientable centering and spreading unit FCD series

Product overview
Fine adjustment unit for robot hand based on the centering unit (PVXM) structure. The FCD compensates for workpiece misalignment during robot handling and can be mounted in any orientation, including downward or sideways. The top plate slides along the workpiece or the tapered surface of the mating part to correct misalignment. A center-lock mechanism returns the top plate to the original position and locks it by supplying air.

Movement
The top plate slides along the workpiece or the tapered surface of the mating part to compensate for misalignment. Air supply returns the top plate to the original position and locks it. The center-lock enables stable operation during transport. If air supply is not available, internal magnets attract the top plate back toward center; magnet centering may differ slightly from the original position.

Models / Materials / Compliance
Series: FCD series
Materials: STEEL, STAINLESS, RESIN
Compliance / marking: RoHS, PAT.P

Notes

• Depending on the magnetic force, it may affect the function of nearby equipment.
• Use the top plate within the specified horizontal stroke and rotation angle to avoid damage.
• Recommended to use this product without lubrication.

Technical specifications

• Model: FCD-10RC-2 (top plate non-rotating type)
• Model: FCD-10RC-2T (top plate rotating type)
• Type: Top plate return by magnetic type (non-rotating / rotating)
• Top plate lock: Center lock (returns to original position and locks using air supply)
• Recommended load capacity - Tensile load: -98 N (10 kgf)
• Recommended load capacity - Compressive load: -98 N (10 kgf)
• Use direction: Vertical dual purpose "Upward/Downward" (suitable for both tensile and compressive loads); landscape仕様 available
• Top plate stroke (X,Y): ±2 mm
• Rotation (θ): FCD-10RC-2: not applicable; FCD-10RC-2T: ±5.2° or less (maximum at top plate center)
• Pressure range: 0.2 MPa - 0.7 MPa
• Repeat accuracy: Center locked: ±0.05 mm / Magnet restoration: ±0.05 mm (magnet centers the top plate but may differ slightly from original position)
• Temperature range: 0 - 60°C
• Weight: FCD-10RC-2: 475 g; FCD-10RC-2T: 487 g
• Download CAD formats available: 3D-CAD, .pdf (model drawing), .dwg, .dxf
