Overview

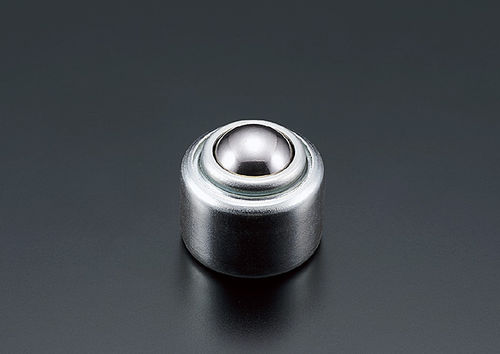

The Planeveyor PV-C / PV-CF series integrates a spring cushion within the unit body to support workpiece load across the transport plane. These units reduce manual handling when moving heavy loads and are suitable for upward and upward/downward applications depending on the model.

Available series / Types

• PV-C series (press molded product)
• PV-CF series
• PV-CAM (spring type for cushion pin holes)
• PV-BC (spring cushion flange mounting type)

Certifications / Materials

• Materials: STEEL, STAINLESS, RESIN
• Compliance / marks shown: RoHS, PAT, PAT.P

PV-C / PV-CF series — Press molded product (models and basic data)
Model | Setting Pressure Weight | Maximum Pressure Weight | Weight | Use Direction | Main Ball | Small Balls | Body | Cover
PV5-C | 49N (5kgf) | 68N (7kgf) | 18g | Upward | STEEL | STEEL | SS | SS
PV8-C | 78N (8kgf) | 107N (11kgf) | 40g | Upward | STEEL | STEEL | SS | SS

Cutting product (example models)
Model | Setting Pressure Weight | Maximum Pressure Weight | Weight | Use Direction | Main Ball | Small Balls | Body | Cover
PV20C | 196N (20kgf) | 284N (29kgf) | 95g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM

Additional PV-C series models
Model | Setting Pressure Weight | Maximum Pressure Weight | Weight | Use Direction | Main Ball | Small Balls | Body | Cover
PV50C | 490N (50kgf) | 686N (70kgf) | 187g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM
PV80C | 784N (80kgf) | 1,038N (106kgf) | 314g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM
PV200C | 1,960N (200kgf) | 2,401N (245kgf) | 860g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM

PV-CF models
Model | Setting Pressure Weight | Maximum Pressure Weight | Weight | Use Direction | Main Ball | Small Balls | Body | Cover
PV50CF | 490N (50kgf) | 686N (70kgf) | 385g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM

PV-CAM (spring type for cushion pin holes) — description and models
This is a spring-type Planeveyor designed for die positioning that matches press bolster cushion pin holes. Two basic sizes are available; auxiliary spacers allow compatibility with cushion pin hole sizes from various press manufacturers.

Model | Loading Data · Quantity of Sinking (0.5mm / 1mm / 1.5mm / 2mm) | Weight | Use Direction | Main Ball | Small Balls | Body | Cover
PV20CAM | 212N (21.265kgf) / 228N (23.25kgf) / 244N (24.875kgf) / 260N (26.5kgf) | 125g | Upward | SUJ2 | SUJ2 | SCM415 | SUM
PV50CAM | 527N (53.75kgf) / 564N (57.5kgf) / 601N (61.25kgf) / 683N (65kgf) | 246g | Upward | SUJ2 | SUJ2 | SCM415 | SUM

PV-BC (spring cushion flange mounting type) — models
Model | Setting Pressure Weight | Maximum Pressure Weight | Weight | Use Direction | Main Ball | Small Balls | Body | Cover
PV50BC | 490N (50kgf) | 548N (56kgf) | 405g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM
PV120BC | 1,176N (120kgf) | 1,372N (140kgf) | 940g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM

Notes
3D-CAD data and PDF drawings are provided for individual models (available as model-specific CAD/PDF documents).
