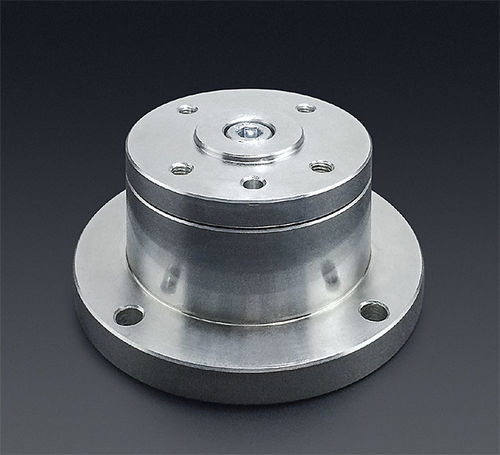

Pre-alignment module FGU series

About Free Guide Unit
The Free Guide Unit is a mechanical alignment unit that automatically compensates position errors during press-fitting operations. It is suitable for press forces up to 10 tons and eliminates centering issues when assembling shafts, bearings, bushings and similar components with hydraulic servo presses and comparable equipment. An option with an integral load cell is available to record pass/fail results.

Materials / Certifications

• STEEL
• STAINLESS
• RESIN
• RoHS
• PAT
• PAT.P

Notes

• *1: The load on the top plate begins to compress in the vertical direction.
• *2: The load on the top plate is seated on the main body.
• *3: Center of gravity shifts during pressurization. Use the FGU so that the center of gravity of the workpiece under pressurization remains within the specified range.
• *4: Maximum total weight of the press-fit tool and workpieces (excluding FGU body).

Features

• Magnetic-force-dependent behavior may limit suitability for some environments.
• Operate the top plate within the specified horizontal stroke and rotation angle to avoid damage.
• Use without lubrication is recommended.
• Catalog examples are indicative; custom variants can be proposed based on application.

Table
Model: FGU-D-2N | FGU-S-2N
Top Plate Stroke (X·Y): ±2 mm (both models)
θ: FGU-D-2N - at top plate center ±6.4°; at 2 mm stroke ±4.8°; FGU-S-2N - (no value)
Starting Resistance (X,Y): FGU-D-2N Less than 80 N; FGU-S-2N Less than 100 N (applied weight at setting pressure)
Repeat Accuracy (X,Y): ±0.05 mm
Vertical Stroke - Setting Pressure Weight*: 282 N
Seating Pressure Weight*: FGU-D-2N 400 N; FGU-S-2N 480 N
Pressurization Center of Gravity Range*: FGU-D-2N within Ø30 mm from center; FGU-S-2N within Ø45 mm from center
Press Fit Tool Load Capacity*: FGU-D-2N 10 kg; FGU-S-2N 5 kg
Use Direction: FGU-D-2N Upward/Downward; FGU-S-2N Sideways
Temperature Range: 0 - 60 °C
Weight: FGU-D-2N 1,450 g; FGU-S-2N 3,300 g
Download CAD: 3D-CAD, .pdf, .dwg, .dxf available for FGU-D-2N and FGU-S-2N

Technical specifications

• Model: FGU-D-2N; FGU-S-2N
• Top Plate Stroke (X·Y): ±2 mm
• θ (rotation): FGU-D-2N at top plate center ±6.4°; at 2 mm stroke ±4.8°
• Starting Resistance (X,Y): FGU-D-2N < 80 N; FGU-S-2N < 100 N
• Repeat Accuracy: ±0.05 mm
• Setting Pressure Weight: 282 N
• Seating Pressure Weight: FGU-D-2N 400 N; FGU-S-2N 480 N
• Pressurization Center of Gravity Range: FGU-D-2N within Ø30 mm; FGU-S-2N within Ø45 mm
• Press Fit Tool Load Capacity: FGU-D-2N 10 kg; FGU-S-2N 5 kg
• Use Direction: Upward/Downward or Sideways (model dependent)
• Temperature Range: 0 - 60 °C
• Weight: FGU-D-2N 1,450 g; FGU-S-2N 3,300 g
