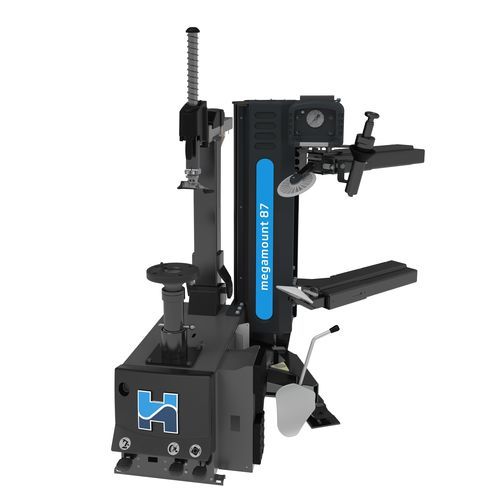

Car tire changer megamount 87

automaticverticalelectric

Short description
Automatic tire changer with centre post turntable and 'combi' bead breaking system, designed for latest-generation UHP and Run Flat tires. Supports rims 10"–30" and wheel widths up to 17" (405 mm).

Product description
The megamount 87 is an automatic tire changer featuring a centre-post turntable and a 'combi' bead breaker combining disc and blade. The machine handles modern UHP and Run Flat tires and integrates a combined gliding movement of the vertical arm for a faster, controlled approach to the rim. Stepless 0–16 rpm speed variation via in-house motoinverter controller. Single-phase 230V 50Hz power supply.

Main data (from technical table)
Clamping range: 10"–30"
Max. wheel diameter: 1160 mm / 46"
Max. wheel width: 405 mm / 17"
Motor: 1.5 kW – inverter
Max. torque: 1200 Nm
Speed of rotation: 0–16 rpm
Bead unseating force on shovel (10 bar): 12000 N
Operating pressure (recommended): 8–12 bar

Brochure
Brochures available in English, German, Italian, French and Spanish.

Features / technical specifications

• Product type: Automatic tire changer with centre post turntable
• Bead breaking system: 'combi' (with disc and with blade)
• Suitable for: latest generation UHP and Run Flat tires
• Maximum rim diameter supported: 30"
• Maximum wheel width supported: 17" (405 mm)
• Clamping range: 10"–30"
• Maximum wheel diameter: 1160 mm / 46"
• Motor: 1.5 kW – inverter
• Speed variation: Stepless 0–16 rpm (motoinverter)
• Maximum torque: 1200 Nm
• Bead unseating force on shovel (at 10 bar): 12000 N
• Operating pressure (recommended): 8–12 bar
• Power supply: Single phase 230V 50Hz
