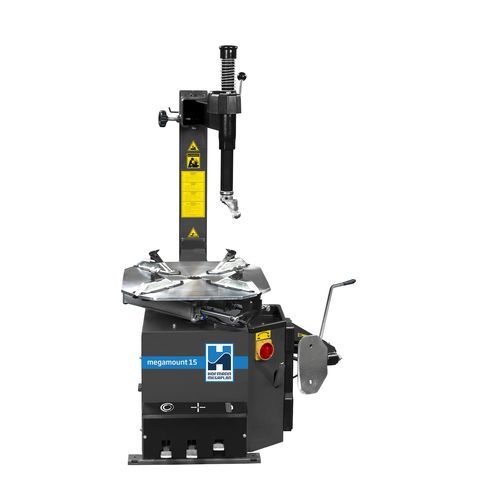

Agricultural vehicle tyre changer megamount 15

for motorcyclessemi-automaticelectric

Short description
Semi-automatic tyre changer megamount 15 with 22" turntable, swing arm and vertical working arm with lever lock. External clamping 10"–22", internal clamping 12"–24", bead breaker shovel working range 13". Double speed via pedals (7/14 rpm) and simple manual tyre inflator.

Key features

• 22" turntable suitable for wheels up to 1000 mm diameter
• Swing arm and vertical working arm with lever lock and spring return
• Side tool positioning via knob for precise rim engagement
• Bead breaker shovel working range: 13" (max opening 330 mm)
• External clamping range: 10"–22"; internal clamping range: 12"–24"
• Double speed pedal unit (7/14 rpm); pedal unit removable for service
• Designed to handle wheels for motorcycles, karts, ATVs and small machinery (with accessories)

Technical data

• External clamping range: 10"–22"
• Inside clamping range: 12"–24"
• Max. wheel diameter: 1000 mm / 39.5"
• Max. wheel width: 330 mm / 13"
• Working range: 10"–24"
• Motor: 0.8/1.1 kW – 3 Ph – 400 V – 50–60 Hz
• Max. torque: 1200 Nm
• Speed of rotation: 7–14 rpm
• Bead breaker max. opening: 330 mm / 13"
• Force on bead breaker blade (10 bar): 29420 N
• Operating pressure (recommended): 10 bar
• Net weight: 230 kg

Applications

• Workshops and tyre service centers for motorcycles, karts, ATVs
• Small repair shops and agricultural/hobby machinery maintenance
• Use with appropriate accessories for wheels with 3.6" to 22" rims

Notes

• Pedal unit includes rotary control and can be detached for maintenance
• Recommended operating pressure: 10 bar; ensure correct electrical supply (3 Ph – 400 V)
• Read safety and installation instructions before use
