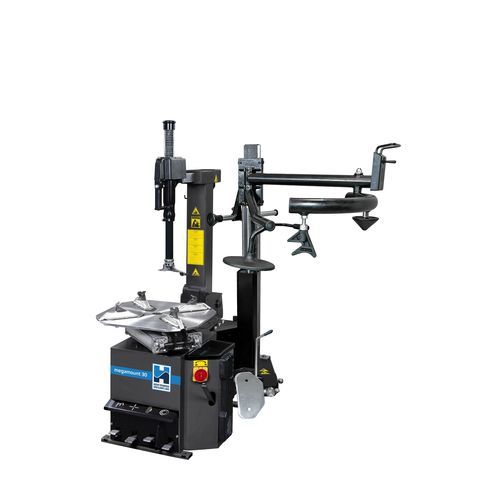

Automatic tyre changer megamount 30FWS

verticalelectricswing-arm

Short description
Automatic tyre changer megamount 30FWS engineered for professional workshops and fleet maintenance. External/inside clamping ranges 10"–22" / 12"–24"; 22" plate; double rotation speed 7/14 rpm; equipped with HPX-WS helper arm and a simple manual tyre inflator.

Features

• 22-inch plate
• Bead breaker shovel working range: 13"
• Vertical post with rear tilting and simultaneous locking of the vertical rod and horizontal arm; vertical arm with spring return
• Conic bushes and play-recovery systems to eliminate post flexure
• Pedals arranged in a row (including rotary control); pedal unit removable for servicing
• Double rotation speed: 7/14 rpm
• Simple manual tyre inflator
• Equipped with HPX-WS helper arm

Technical data

• External clamping range: 10"–22"
• Inside clamping range: 12"–24"
• Max. wheel diameter: 1000 mm / 39.5"
• Max. wheel width: 330 mm / 13"
• Working range: 10"–24"
• Motor: 0.8/1.1 kW – 3 Ph – 400 V – 50-60 Hz
• Max. torque: 1200 Nm
• Speed of rotation: 7–14 rpm
• Bead breaker max. opening: 330 mm / 13"
• Force on bead breaker blade (10 bar): 29420 N
• Operating pressure (recommended): 10 bar
• Net weight: 230 kg
