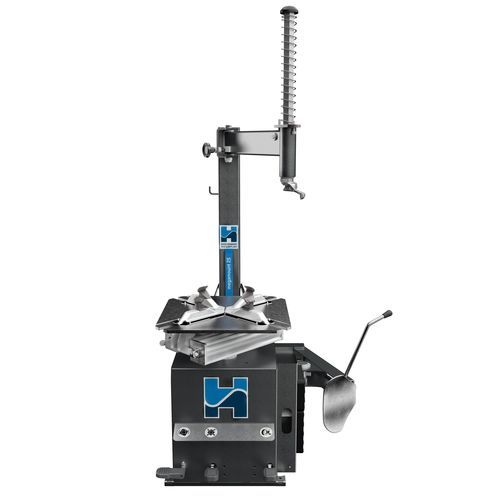

Car tyre changer megamount 25
semi-automaticverticalelectric

Car tyre changer - megamount 25 - Hofmann Megaplan GmbH - semi-automatic / vertical / electric
Car tyre changer - megamount 25 - Hofmann Megaplan GmbH - semi-automatic / vertical / electric
Car tyre changer - megamount 25 - Hofmann Megaplan GmbH - semi-automatic / vertical / electric - image - 2
Car tyre changer - megamount 25 - Hofmann Megaplan GmbH - semi-automatic / vertical / electric - image - 3
Add to favorites
Compare this product

Characteristics

Applications
for car
Type
semi-automatic
Structure
vertical
Other characteristics
pneumatic, electric, swing-arm
Clamping diameter

Max.: 25 in

Min.: 10 in

Max wheel diameter

1,030 mm
(40.6 in)

Max wheel width

330 mm
(13 in)

Description

Overview
  • Semi-automatic tyre changer with swing arm suitable for workshops with limited space.
  • 22-inch turntable.
  • Rotation pedal positioned and designed for side operation (ideal for swing-arm machines).
  • Hexagonal vertical arm for increased rigidity; locked by lever with spring return.
  • Bead breaker: double-acting, fast and powerful, for wheels up to 12.8" width.
  • Turntable clamping capacity up to 25"; equipped with opposing jaws and two Ø75 mm cylinders for optimal rim clamping.
  • Jaws with internal-grip design for secure internal clamping; minimum external clamping 10" for small wheels.
  • Pedal unit removable for maintenance.
  • Single speed: 7 rpm.
  • Gearbox-to-turntable transmission via toothed belt to prevent slipping and ensure stable rotation.


On request
  • Pedal-operated inflation version with pressure gauge and CE-certified inflation pressure limiter.


Technical specifications
  • External clamping range: 10"–22"
  • Internal clamping range: 12"–25"
  • Max. wheel diameter: 1030 mm / 40.5"
  • Max. wheel width: 330 mm / 13"
  • Working range: 10"–25"
  • Motor: 0.55 kW – 3 Ph – 400 V – 50-60 Hz
  • Speed of rotation: 7 rpm
  • Bead unseating force on shovel (10 bar): 12750 N
  • Operating pressure (recommended): 10 bar (145 psi)
  • Noise level: < 70 ± 3 dB(A)
  • Net weight: 180 kg
