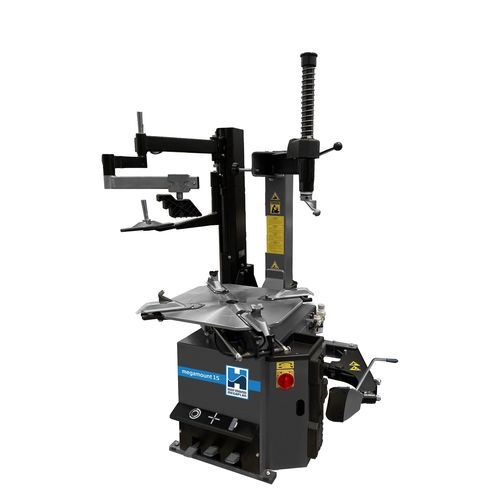

Motorcycle tyre changer megamount 15FS

for carsemi-automatichorizontal

Short description
Semi-automatic tyre changer megamount 15FS with 22" turntable, double-speed drive and HPX-S left-side bead press for workshop use.

Description

• 22" turntable suitable for motorcycle, kart, ATV and small vehicle wheels
• Bead breaker shovel working range: 13"
• Swing arm tyre changer with vertical working arm and lever lock; side tool positioning via knob and spring-return vertical arm
• Horizontal arm fastening allows operation (with accessories) on rims from 3.6" up to 22"
• Pedal control unit arranged in a row (including rotation control); removable for maintenance
• Double speed gearbox: 7 / 14 rpm
• Manual tyre inflator included
• Equipped with HPX-S left side bead pressing device

Technical table

• External clamping range: 10"–22"
• Internal clamping range: 12"–24"
• Max. wheel diameter: 1000 mm / 39.5"
• Max. wheel width: 330 mm / 13"
• Working range: 10"–24"
• Motor: 0.8/1.1 kW – 3 Ph – 400 V – 50–60 Hz
• Max. torque: 1200 Nm
• Speed of rotation: 7–14 rpm
• Bead breaker max. opening: 330 mm / 13"
• Force on bead breaker blade (10 bar): 29420 N
• Operating pressure (recommended): 10 bar
• Net weight: 230 kg

Technical specifications

• External clamping range: 10"–22"
• Internal clamping range: 12"–24"
• Max. wheel diameter: 1000 mm / 39.5"
• Max. wheel width: 330 mm / 13"
• Working range: 10"–24"
• Motor: 0.8/1.1 kW – 3 Ph – 400 V – 50–60 Hz
• Max. torque: 1200 Nm
• Speed of rotation: 7–14 rpm
• Bead breaker max. opening: 330 mm / 13"
• Force on bead breaker blade (10 bar): 29420 N
• Operating pressure (recommended): 10 bar
• Net weight: 230 kg
