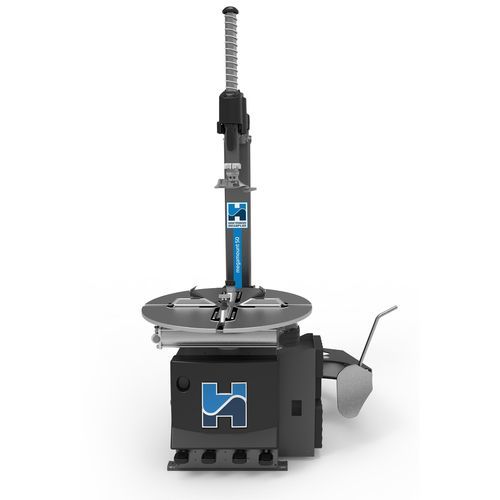

Car tyre changer megamount 50

automaticelectricpneumatic

Overview
The megamount 50 is an automatic tyre changer designed for professional workshops and tyre service centres. Featuring a 24" plate and pedal-operated double-speed drive, it supports a wide wheel range and offers easy maintenance with a detachable pedal unit.

Key features

• 24" plate for external clamping
• Square bar 50 x 50 mm, guided by rollers
• Adjustable hexagonal bar thickness 41 mm
• Bead breaker shovel working range: 15"; max opening 380 mm
• Cylinder diameter 200 mm / piston 25 mm; clamping cylinder Ø 80 mm
• Pedals in a row with rotary control; pedal unit removable for servicing
• Double speed: 8 / 16 rpm (inverter optional)
• Supplied with a simple manual tyre inflator; replaceable external clamping claws

Technical data

• External clamping range: 10"–24"
• Internal clamping range: 12"–27"
• Max. wheel diameter: 1170 mm / 46"
• Max. wheel width: 381 mm / 15"
• Working range (wheel): 10"–27"
• Motor: 0.8/1.1 kW – 3 Ph – 400 V – 50 Hz
• Max. torque: 1200 Nm
• Speed of rotation: 8–16 rpm
• Height of the plate from the floor: 670 mm
• Bead unseating force on shovel (10 bar): 15000 N
• Operating pressure (recommended): 8–10 bar

Applications and benefits

• Suitable for tyre shops, dealer service bays and fleet workshops
• Wide clamping and working ranges cover passenger and light commercial wheels
• Detachable pedal unit simplifies maintenance and reduces downtime
• Double-speed rotation improves cycle time for high-throughput workshops

Options and accessories

• Inverter for variable-speed control (optional)
• Replaceable external clamping claws and adjustable assembly column
• Includes manual tyre inflator; additional pneumatic accessories available on request
