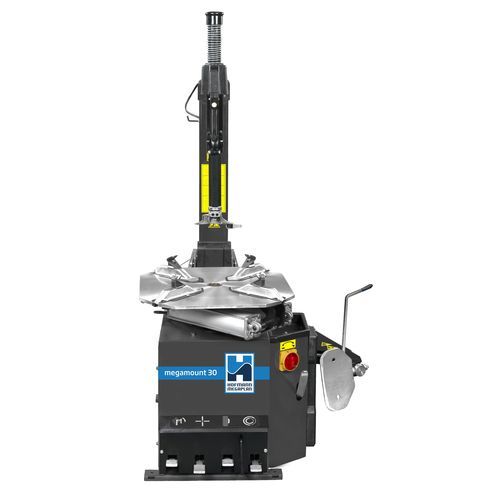

Truck tyre changer megamount 30

for industrial vehiclesautomatichorizontal

Short description

• Automatic tyre changer for commercial and industrial wheels, model Megamount 30; external clamping range 10"–22", inside clamping range 12"–24"
• Double rotation speed (7/14 rpm) with pedal control; 22" mounting plate

Features

• 22" mounting plate
• Bead breaker shovel working range: 13" (330 mm)
• Vertical post with rear tilting; simultaneous locking of vertical rod and horizontal arm; vertical arm with spring return
• Conical bushes and play compensation on vertical post to eliminate flexure
• Row-positioned pedals with rotary control; detachable pedal unit for maintenance
• Double speed: 7/14 rpm
• Simple manual tyre inflator

Technical table
External clamping range: 10"–22"
Inside clamping range: 12"–24"
Max. wheel diameter: 1000 mm / 39.5"
Max. wheel width: 330 mm / 13"
Working range: 10"–24"
Motor: 0.8/1.1 kW – 3 Ph – 400 V – 50–60 Hz
Max. torque: 1200 Nm
Speed of rotation: 7–14 rpm
Bead breaker max. opening: 330 mm / 13"
Force on bead breaker blade (at 10 bar): 29,420 N
Recommended operating pressure: 10 bar
Net weight: 230 kg

Specifications

• External clamping range: 10"–22"
• Inside clamping range: 12"–24"
• Max. wheel diameter: 1000 mm / 39.5"
• Max. wheel width: 330 mm / 13"
• Working range: 10"–24"
• Motor: 0.8/1.1 kW – 3 Phase – 400 V – 50–60 Hz
• Max. torque: 1200 Nm
• Speed of rotation: 7–14 rpm (double speed)
• Bead breaker max. opening: 330 mm / 13"
• Force on bead breaker blade (at 10 bar): 29,420 N
• Recommended operating pressure: 10 bar
• Net weight: 230 kg
